LC1D50A6SD
ActiveSCHNEIDER ELECTRIC

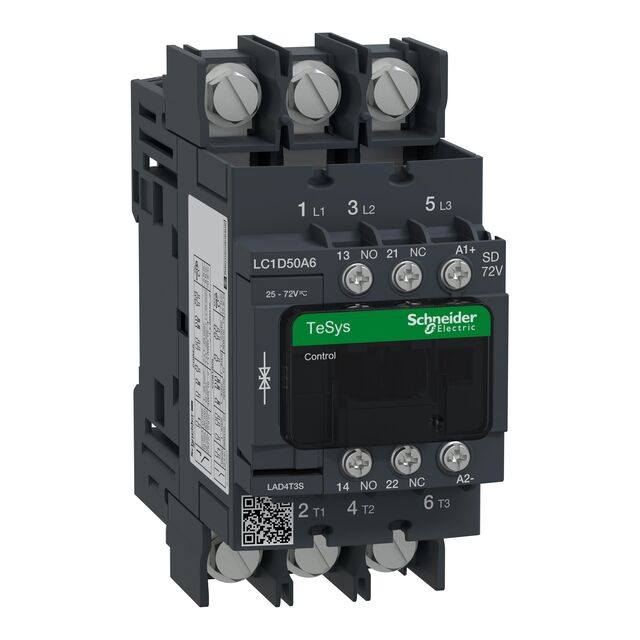

TESYS 3P EVLK CTR 50A22KW AC3 72
LC1D50A6SD
ActiveSCHNEIDER ELECTRIC
TESYS 3P EVLK CTR 50A22KW AC3 72
Description
General part information
LC1D50A6SD
TESYS 3P EVLK CTR 50A22KW AC3 72
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D50A6SD |
|---|---|
| Coil Voltage | 72 VDC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 50 A |
| Features | Diode, Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 54 VDC |
| Must Release Voltage | 7.2 VAC |
| Operate Time | 57.5 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 24 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Box Lug |
