117-87-430-41-105101

Active

Preci-Dip

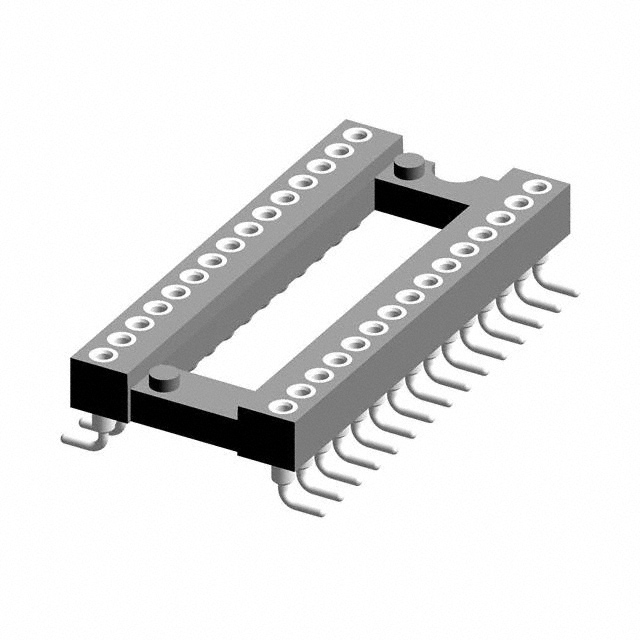

CONN IC DIP SOCKET 30POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

117-87-430-41-105101

Active

Preci-Dip

CONN IC DIP SOCKET 30POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	117-87-430-41-105101	117-87 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	Flash	Flash
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	1 A	1 A
Features	Open Frame	Open Frame
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	30	16 - 68
Number of Positions or Pins (Grid)	-	2 x 16
Number of Positions or Pins (Grid)	-	32
Number of Positions or Pins (Grid) [custom]	2	2
Number of Positions or Pins (Grid) [custom]	15	15 - 20
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.07 in	0.07 in
Pitch - Mating	1.78 mm	1.78 mm
Pitch - Post	0.07 in	0.07 in
Pitch - Post	1.78 mm	1.78 mm
Termination	Solder	Solder
Termination Post Length	3.18 mm	3.18 mm
Termination Post Length	0.125 in	0.125 in
Type	0.4 in	0.3 - 0.75 in
Type	10.16 mm	7.62 - 19.05 mm
Type	DIP	DIP

117-87 Series

CONN IC DIP SOCKET 42POS GOLD

Part	Contact Material - Mating	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Termination	Contact Finish - Post	Contact Material - Post [custom]	Type	Type	Type	Pitch - Post	Pitch - Post	Material Flammability Rating	Contact Finish Thickness - Mating	Mounting Type	Current Rating (Amps)	Termination Post Length	Termination Post Length	Contact Resistance	Housing Material	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Preci-Dip 117-87-642-41-105101	Beryllium Copper	Gold	-55 °C	125 °C	Open Frame	Solder	Tin	Brass	DIP	0.6 in	15.24 mm	0.07 in	1.78 mm	UL94 V-0	Flash	Through Hole	1 A	3.18 mm	0.125 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.07 in	1.78 mm	42
Preci-Dip 117-87-620-41-005101	Beryllium Copper	Gold	-55 °C	125 °C	Open Frame	Solder	Tin	Brass	DIP	0.6 in	15.24 mm	0.07 in	1.78 mm	UL94 V-0	Flash	Through Hole	1 A	3.18 mm	0.125 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.07 in	1.78 mm	20
Preci-Dip 117-87-656-41-105101	Beryllium Copper	Gold	-55 °C	125 °C	Open Frame	Solder	Tin	Brass	DIP	0.6 in	15.24 mm	0.07 in	1.78 mm	UL94 V-0	Flash	Through Hole	1 A	3.18 mm	0.125 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.07 in	1.78 mm	56
Preci-Dip 117-87-428-41-005101	Beryllium Copper	Gold	-55 °C	125 °C	Open Frame	Solder	Tin	Brass	DIP	0.4 in	10.16 mm	0.07 in	1.78 mm	UL94 V-0	Flash	Through Hole	1 A	3.18 mm	0.125 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.07 in	1.78 mm	28
Preci-Dip 117-87-764-41-105101	Beryllium Copper	Gold	-55 °C	125 °C	Open Frame	Solder	Tin	Brass	DIP	0.75 in	19.05 mm	0.07 in	1.78 mm	UL94 V-0	Flash	Through Hole	1 A	3.18 mm	0.125 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.07 in	1.78 mm	64
Preci-Dip 117-87-430-41-105101	Beryllium Copper	Gold	-55 °C	125 °C	Open Frame	Solder	Tin	Brass	DIP	0.4 in	10.16 mm	0.07 in	1.78 mm	UL94 V-0	Flash	Through Hole	1 A	3.18 mm	0.125 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.07 in	1.78 mm	30	2	15
Preci-Dip 117-87-648-41-105101	Beryllium Copper	Gold	-55 °C	125 °C	Open Frame	Solder	Tin	Brass	DIP	0.6 in	15.24 mm	0.07 in	1.78 mm	UL94 V-0	Flash	Through Hole	1 A	3.18 mm	0.125 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.07 in	1.78 mm	48
Preci-Dip 117-87-624-41-105101	Beryllium Copper	Gold	-55 °C	125 °C	Open Frame	Solder	Tin	Brass	DIP	0.6 in	15.24 mm	0.07 in	1.78 mm	UL94 V-0	Flash	Through Hole	1 A	3.18 mm	0.125 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.07 in	1.78 mm	24
Preci-Dip 117-87-640-41-105101	Beryllium Copper	Gold	-55 °C	125 °C	Open Frame	Solder	Tin	Brass	DIP	0.6 in	15.24 mm	0.07 in	1.78 mm	UL94 V-0	Flash	Through Hole	1 A	3.18 mm	0.125 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.07 in	1.78 mm	40	2	20
Preci-Dip 117-87-642-41-005101	Beryllium Copper	Gold	-55 °C	125 °C	Open Frame	Solder	Tin	Brass	DIP	0.6 in	15.24 mm	0.07 in	1.78 mm	UL94 V-0	Flash	Through Hole	1 A	3.18 mm	0.125 in	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.07 in	1.78 mm	42

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1710	$ 2.26

Description

General part information

117-87 Series

30 (2 x 15) Pos DIP, 0.4" (10.16mm) Row Spacing Socket Gold Through Hole
