Description
General part information
384674-E

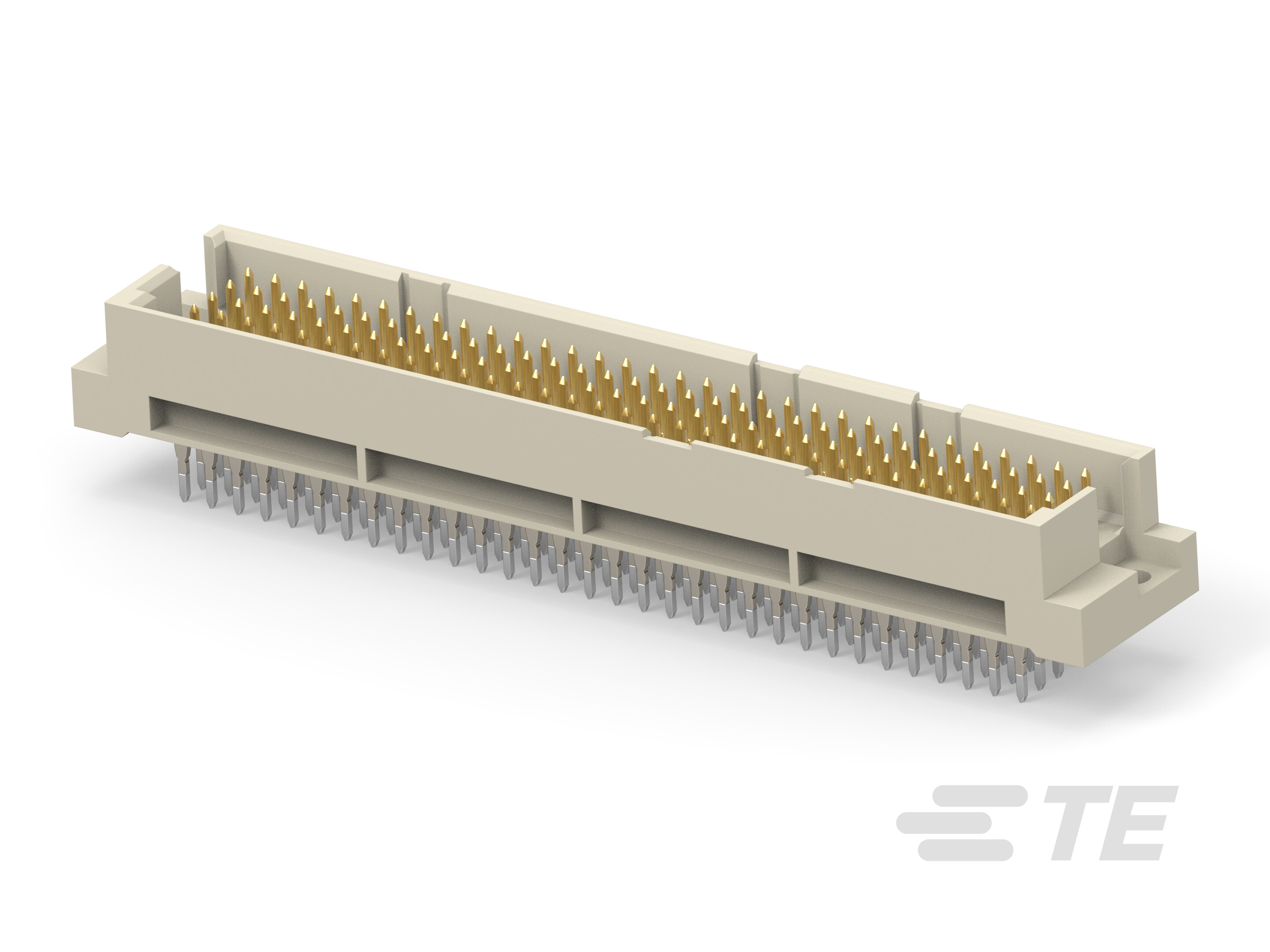

Plug, Board-to-Board, 160 Position, 2.54 mm [.1 in] Centerline, Printed Circuit Board, 5 Row, Vertical, 32 Column, Eurocard Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 384674-E |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Level, Class | 2 |
| Mounting Type | Through Hole |
| Number of Positions | 160 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Pitch | 0.1 in |
| Style | TE |
| Termination | Press-Fit |
