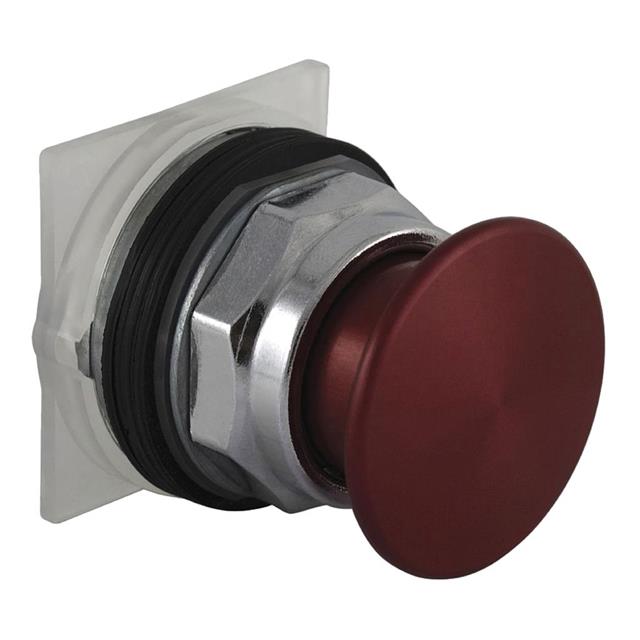

Specification	9001KR9RM94

Actuator Type	Mushroom, Pushbutton
Compatible Series	Harmony 9001K, Schneider
Illumination	Non-Illuminated
Panel Cutout Dimension	30 mm
Panel Cutout Shape	Round
Requires	Contact Block(s)
Type	Maintained

9001KR Series

Part	Actuator Type	Requires	Type	Compatible Series	Panel Cutout Dimension	Panel Cutout Shape	Illumination	Compatible Series Dimension	Switch Function	Termination Style	Current Rating	Panel Cutout Diameter	Circuit	Color - Actuator/Cap	Mounting Type	For Use With/Related Products	Accessory Type	Illumination Type	Color	Illumination Voltage (Nominal) (Maximum)	Illumination Voltage (Nominal) (Minimum)
SCHNEIDER ELECTRIC 9001KR9P1R	Mushroom Pushbutton	Contact Block(s) Illumination Source	Momentary	Harmony 9001K Schneider	30 mm	Round	Red
SCHNEIDER ELECTRIC 9001KR4Y	Mushroom Pushbutton	Contact Block(s)	Maintained	Harmony 9001K Schneider	30 mm	Round	Non-Illuminated
SCHNEIDER ELECTRIC 9001KR24GH6	Mushroom Pushbutton	Contact Block(s)	Momentary	Schneider	30 mm	Round	Non-Illuminated	30 mm
SCHNEIDER ELECTRIC 9001KR4GH5	Button Mushroom Round		Standard			Circular			Off-On	Screw Terminal	10 A	30 mm	SPST-NO	Green	Front Panel Mount
SCHNEIDER ELECTRIC 9001KR2GH7	Button Round		Standard			Circular			Off-On	Screw Terminal	10 A	30 mm	DPST-NO	Green	Front Panel Mount
SCHNEIDER ELECTRIC 9001KR25GH13	Mushroom Pushbutton	Contact Block(s)	Momentary	Schneider	30 mm	Round	Non-Illuminated	30 mm
SCHNEIDER ELECTRIC 9001KR24BH36	Button Mushroom Round		Standard			Circular			Off-On	Screw Terminal	10 A	30 mm	SPST-NO	Black	Front Panel Mount
SCHNEIDER ELECTRIC 9001KR9																Harmony 9001K Series	Operating Head
SCHNEIDER ELECTRIC 9001KR25B	Mushroom Pushbutton	Contact Block(s)	Momentary	Harmony 9001K Schneider	30 mm	Round	Non-Illuminated
SCHNEIDER ELECTRIC 9001KR9P35RH13	Button Mushroom Round		Illuminated Standard			Circular			On-On	Screw Terminal	10 A	30 mm	SPDT	Red	Front Panel Mount			Incandescent	Red	28 VDC	24 VAC/DC
