FMC00004-60
ActiveFairview Microwave
CBL ASSY BNCPLUG-BNCPLUG 60
FMC00004-60
ActiveFairview Microwave
CBL ASSY BNCPLUG-BNCPLUG 60
Description
General part information
FMC00004-60

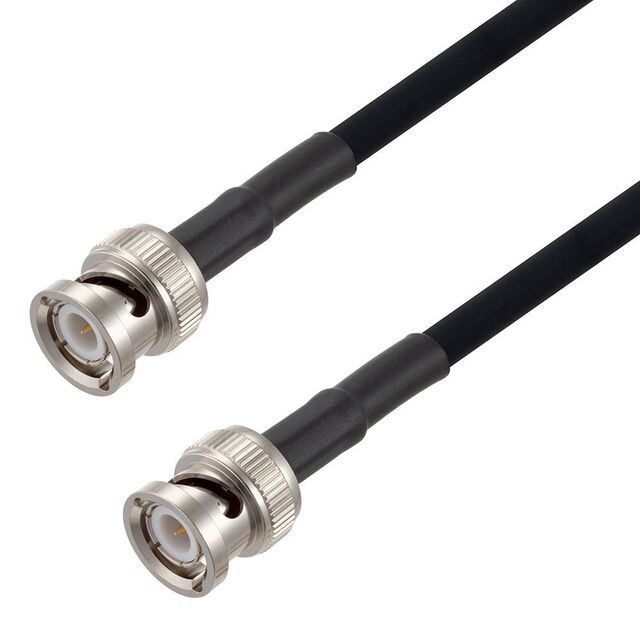

Cable Assembly Coaxial BNC to BNC RG-223 60.0" (1.5m) 5.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC00004-60 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 4 GHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | BNC |
