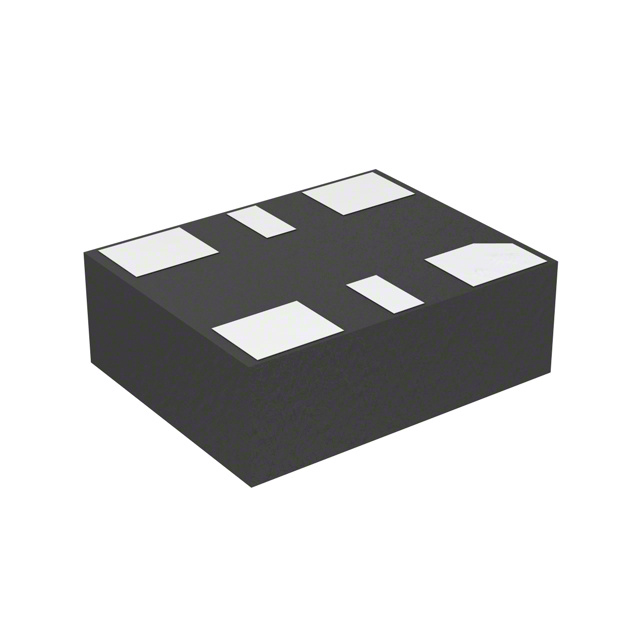

ASDMPLP-150.000MHZ-LR-T3
UnknownAbracon LLC
MEMS OSC XO 150.0000MHZ LVPECL
ASDMPLP-150.000MHZ-LR-T3
UnknownAbracon LLC
MEMS OSC XO 150.0000MHZ LVPECL
Description
General part information
ASDMPLP-150.000MHZ-LR-T3
150 MHz XO (Standard) LVPECL Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ASDMPLP-150.000MHZ-LR-T3 |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Disable) (Max) | 95 µA |
| Current - Supply (Max) | 58 mA |
| Frequency | 150 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.035 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVPECL |
| Package / Case | No Lead, 6-SMD |
| Package Length | 2.5 mm |
| Package Name | 6-SMD |
| Package Width | 2 mm |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.25 V |
