Description
General part information
MDOB128064V2V-YI

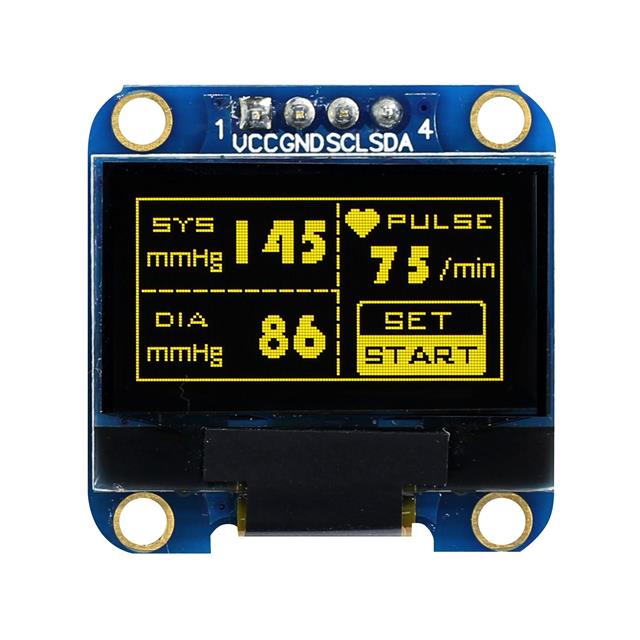

Graphic LCD Display Module Transmissive Yellow OLED I2C 0.96" (24.38mm) 128 x 64
Technical Specifications
Parameters and characteristics for this part
| Specification | MDOB128064V2V-YI |
|---|---|
| Background Color | Black |
| Backlight Color | Yellow |
| Backlight Type | LED |
| Controller Type | SSD1306BZ |
| Diagonal Screen Size | 0.96 in |
| Display Mode | Transmissive |
| Display Type | OLED |
| Dot Pixels (Horizontal) | 128 pixels |
| Dot Pixels (Vertical) | 64 pixels |
| Graphics Color | Yellow |
| Interface | I2C |
| Touchscreen | Non-Touch |
| Viewing Area Height | 12.06 mm |
| Viewing Area Width | 23.94 mm |
