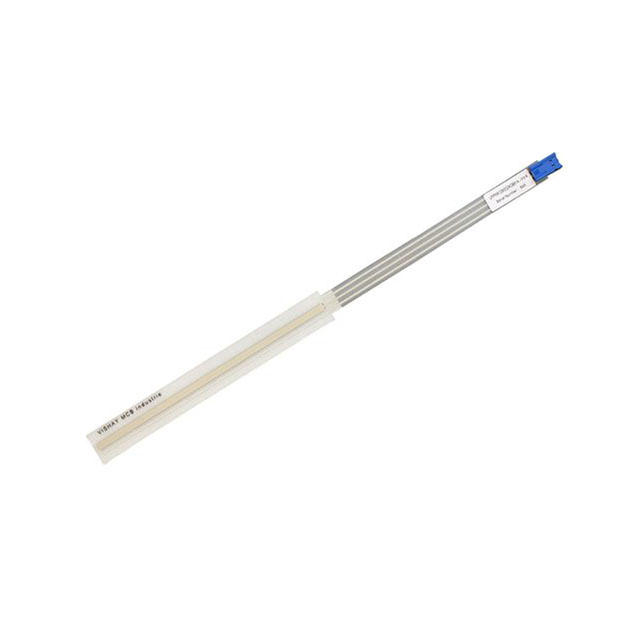

UIPMA050I472XCB
ActiveVishay Dale
DISPLACEMENT SENSOR, 50MM, 4.7K, 30% ROHS COMPLIANT: YES
UIPMA050I472XCB
ActiveVishay Dale
DISPLACEMENT SENSOR, 50MM, 4.7K, 30% ROHS COMPLIANT: YES
Description
General part information
UIPMA050I472XCB
Resistive Sensor Linear Position Flexible Membrane - Linear Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | UIPMA050I472XCB |
|---|---|
| Actuator Type | Linear, Flexible Membrane |
| For Measuring | Linear Position |
| Linear Range (Max) | 50 mm |
| Linear Range (Min) | 0 mm |
| Linearity Tolerance | 2 % |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Output | Resistive |
| Package / Case | Sensor Strip |
| Resistance | 4.7 kOhm |
| Resistance Tolerance (%) | 30 % |
| Technology | Resistive |
| Termination Style | Wire Leads |
