2377168-3
ActiveTE Connectivity AMP Connectors

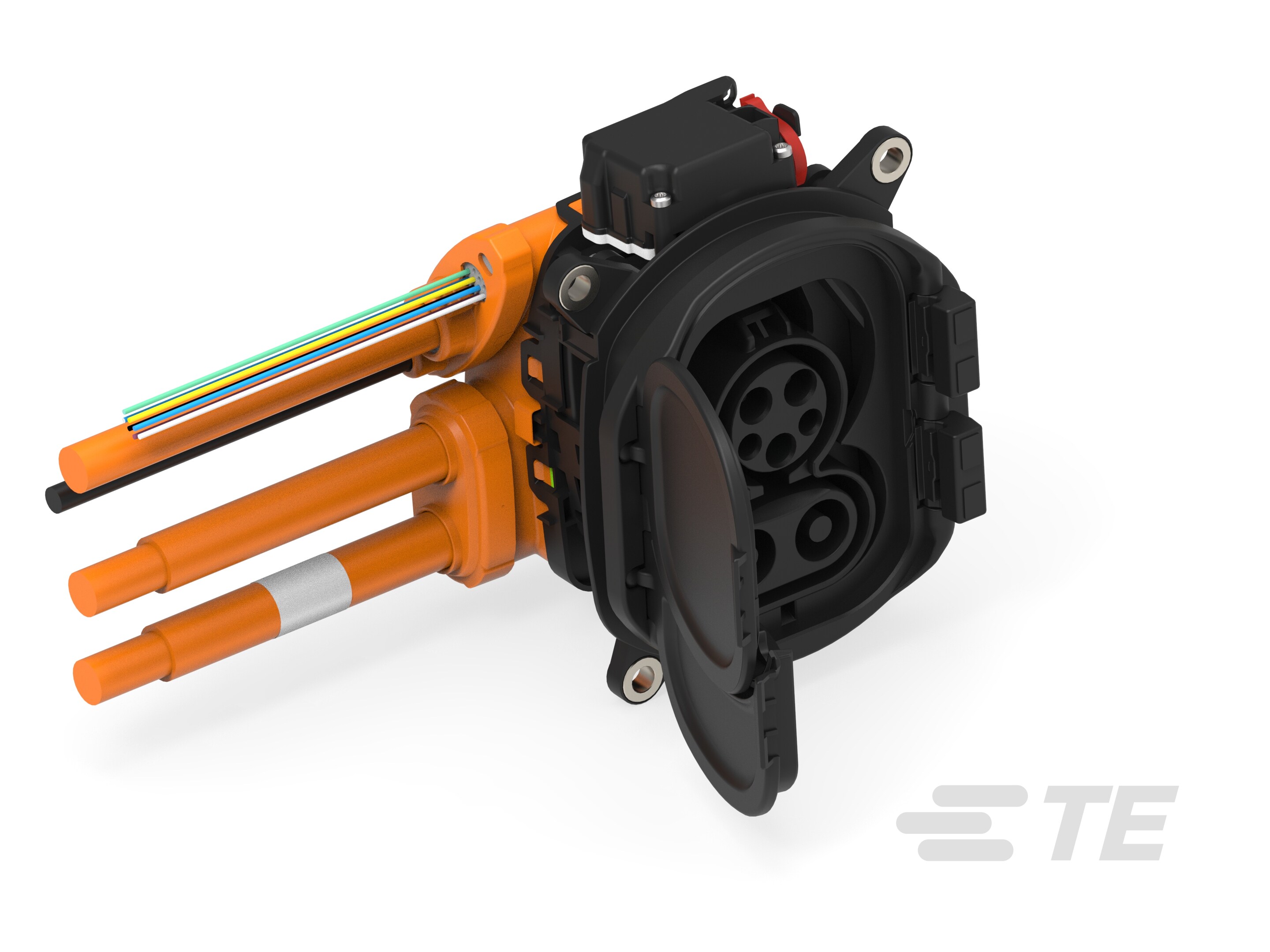

SWITZERLANDARGING INLET CCS1, CA
2377168-3
ActiveTE Connectivity AMP Connectors
SWITZERLANDARGING INLET CCS1, CA
Description
General part information
Charging Inlets Series
1000 VDC, 1.5 m [4.92 ft], -40 – 85 °C [-40 – 185 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | 2377168-3 |
|---|---|
| 1st Connector | 62196-2 (Type 1), 62196-3 (Type 1) |
| 2nd Connector | Cable |
| Conductor Types | Power, Signal |
| Current Rating Options | 200A, 32A |
| Number of Conductors - Power | 5 |
| Number of Conductors - Signal | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shielding | Shielded |
| Style | Leads, Female Plug |
| Voltage Rating (AC) | 250 VAC |
| Voltage Rating (DC) | 1000 VDC |
