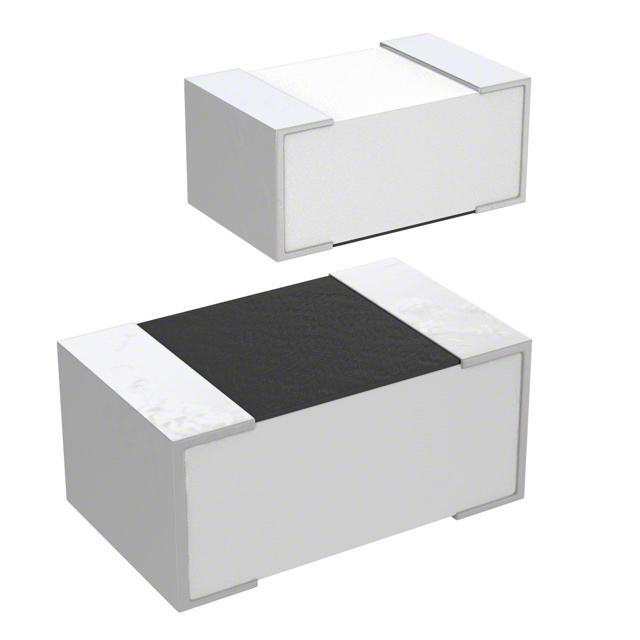

Specification	F0805B0R50FSTR

Approval Agency	cUL, UL
Breaking Capacity	50 A
Current Rating	0.5 A
Fuse Type	Board Mount (Cartridge Style Excluded)
Melting I²t	0.0002
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	0805 (2012 Metric)
Response Time	Fast Blow
Size / Dimension Height	0.035 in
Size / Dimension Length	0.083 in
Size / Dimension Width	0.05 in
Voltage Rating - AC	63 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
