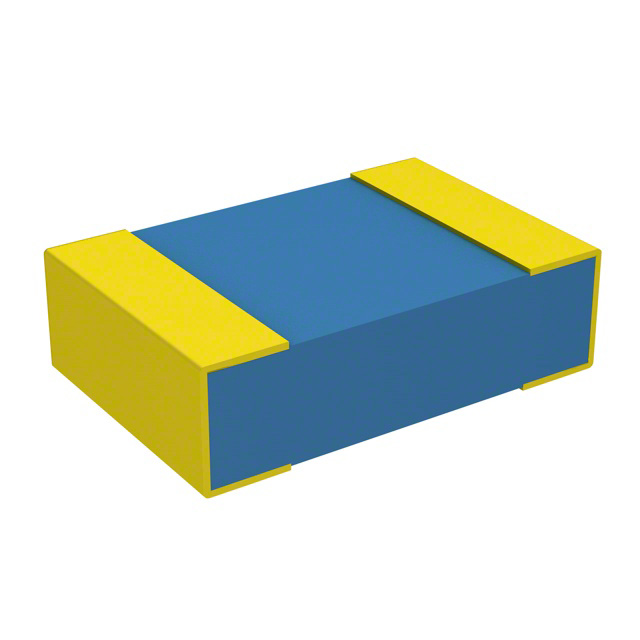

PHT0805Y1003BGT
ActiveVishay Dale
SMD CHIP RESISTOR, PHT SERIES, 100 KOHM, ± 0.1%, 60 MW, 0805 [2012 METRIC], THIN FILM
PHT0805Y1003BGT
ActiveVishay Dale
SMD CHIP RESISTOR, PHT SERIES, 100 KOHM, ± 0.1%, 60 MW, 0805 [2012 METRIC], THIN FILM
Description
General part information
PHT0805Y1003BGT
100 kOhms ±0.1% 0.06W Chip Resistor 0805 (2012 Metric) Anti-Sulfur Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | PHT0805Y1003BGT |
|---|---|
| Composition | Thin Film |
| Features | Anti-Sulfur |
| Height - Seated (Max) | 0.018 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 215 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Package Name | 0805 |
| Power (Watts) | 0.06 W |
| Resistance | 100 kOhm |
| Size / Dimension Length | 0.075 in |
| Size / Dimension Width | 0.05 in |
| Temperature Coefficient | 15 ppm/°C |
| Tolerance | 0.1 % |
