UPL2000-D4/B

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 75 OHM 1=50

Deep-Dive with AI

Search across all available documentation for this part.

UPL2000-D4/B

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 75 OHM 1=50

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 484.76
		10	$ 446.46

Description

General part information

UPL2000 Series

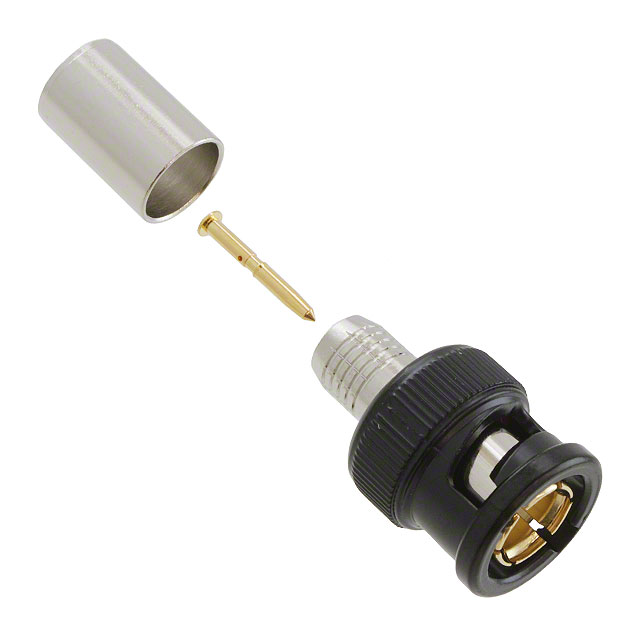

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UPL2000-D4/B	UPL2000 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	Belden 1694A	Belden 1694A, Comm/Scope 7538, Nokia 0.6/2.8, Belden 1505A, RG-59, Belden 1855A, Belden 1695A, Belden 9221, RG-179
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Black	Black
Impedance	75 Ohms	75 Ohms
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

UPL2000 Series

CONN BNC PLUG STR 75 OHM CRIMP

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Number of Ports	Mating Cycles	Fastening Type	Contact Termination	Frequency - Max [Max]	Dielectric Material	Body Finish	Shield Termination	Voltage Rating	Cable Group	Body Material	Mounting Type	Center Contact Plating	Connector Style	Center Contact Material	Housing Color	Insertion Loss
Cinch Connectivity Solutions Trompeter UPL2000-D4	Male Pin, Plug	85 °C	-40 °C	75 Ohms	1	500	Bayonet Lock	Crimp	4 GHz	Polytetrafluoroethylene (PTFE)	Nickel	Crimp	500 V	Belden 1694A	Brass	Free Hanging (In-Line)	Gold	BNC	Brass	Black	0.2 dB
Cinch Connectivity Solutions Trompeter UPL2000-D4/B	Male Pin, Plug	85 °C	-40 °C	75 Ohms	1	500	Bayonet Lock	Crimp	4 GHz	Polytetrafluoroethylene (PTFE)	Nickel	Crimp	500 V	Belden 1694A	Brass	Free Hanging (In-Line)	Gold	BNC	Brass	Black	0.2 dB
Cinch Connectivity Solutions Trompeter UPL2000-D1/B	Male Pin, Plug	85 °C	-40 °C	75 Ohms	1	500	Bayonet Lock	Crimp	4 GHz	Polytetrafluoroethylene (PTFE)	Nickel	Crimp	500 V	Comm/Scope 7538	Brass	Free Hanging (In-Line)	Gold	BNC	Brass	Black	0.2 dB
Cinch Connectivity Solutions Trompeter UPL2000-D12/B	Male Pin, Plug	85 °C	-40 °C	75 Ohms	1	500	Bayonet Lock	Crimp	4 GHz	Polytetrafluoroethylene (PTFE)	Nickel	Crimp	500 V	Nokia 0.6/2.8	Brass	Free Hanging (In-Line)	Gold	BNC	Brass	Black	0.2 dB
Cinch Connectivity Solutions Trompeter UPL2000-D5/B	Male Pin, Plug	85 °C	-40 °C	75 Ohms	1		Bayonet Lock	Crimp	4 GHz	Polytetrafluoroethylene (PTFE)	Nickel	Crimp	500 V		Brass	Free Hanging (In-Line)	Gold	BNC	Brass	Black
Cinch Connectivity Solutions Trompeter UPL2000-D2/B	Male Pin, Plug	85 °C	-40 °C	75 Ohms	1	500	Bayonet Lock	Crimp	4 GHz	Polytetrafluoroethylene (PTFE)	Nickel	Crimp	500 V	Belden 1505A	Brass	Free Hanging (In-Line)	Gold	BNC	Brass	Black	0.2 dB
Cinch Connectivity Solutions Trompeter UPL2000-D3/B	Male Pin, Plug	85 °C	-40 °C	75 Ohms	1	500	Bayonet Lock	Crimp	4 GHz	Polytetrafluoroethylene (PTFE)	Nickel	Crimp	500 V	RG-59	Brass	Free Hanging (In-Line)	Gold	BNC	Brass	Black	0.2 dB
Cinch Connectivity Solutions Trompeter UPL2000-D19/B	Male Pin, Plug	85 °C	-40 °C	75 Ohms	1	500	Bayonet Lock	Crimp	4 GHz	Polytetrafluoroethylene (PTFE)	Nickel	Crimp	500 V	Belden 1855A	Brass	Free Hanging (In-Line)	Gold	BNC	Brass	Black	0.2 dB
Cinch Connectivity Solutions Trompeter UPL2000-D1	Male Pin, Plug	85 °C	-40 °C	75 Ohms	1	500	Bayonet Lock	Crimp	4 GHz	Polytetrafluoroethylene (PTFE)	Nickel	Crimp	500 V	Comm/Scope 7538	Brass	Free Hanging (In-Line)	Gold	BNC	Brass	Black	0.2 dB
Cinch Connectivity Solutions Trompeter UPL2000-D6/B	Male Pin, Plug	85 °C	-40 °C	75 Ohms	1	500	Bayonet Lock	Crimp	4 GHz	Polytetrafluoroethylene (PTFE)	Nickel	Crimp	500 V	Belden 1695A	Brass	Free Hanging (In-Line)	Gold	BNC	Brass	Black	0.2 dB
