AC37
ActiveBright Toward Industrial Co., Ltd.

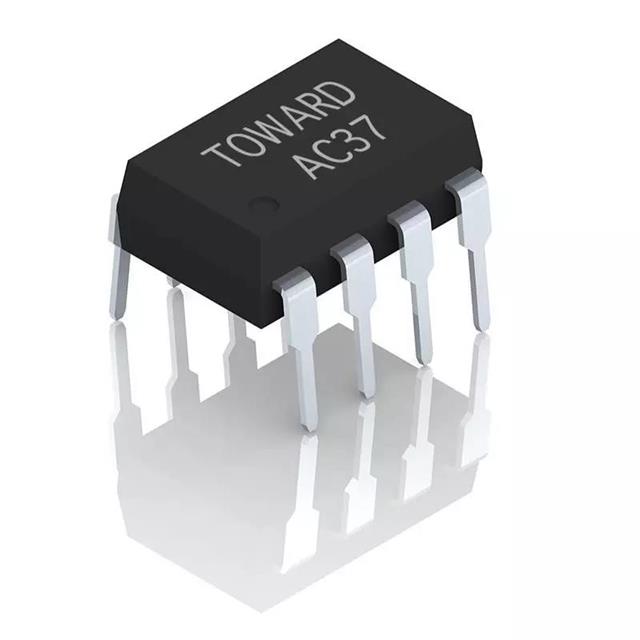

DIP-8, 60V / 550MA, SSR RELAY SP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AC37
ActiveBright Toward Industrial Co., Ltd.
DIP-8, 60V / 550MA, SSR RELAY SP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AC37 | - Series |
|---|---|---|
| Circuit | SPST-NO (1 Form A) x 2 | SPST-NO (1 Form A) x 2, DPST-NO (2 Form A) |
| Grade | - | Automotive |
| Load Current | 500 mA | 1 - 900 mA |
| Mounting Type | Through Hole | Through Hole, Surface Mount |
| On-State Resistance (Max) | - | 160 mOhms |
| On-State Resistance (Max) [Max] | 1.6 Ohms | 1 - 300 Ohms |
| Output Type | DC, AC | DC, AC, AC, Zero Cross |
| Package / Case | 0.3 in | 0.173 - 7.62 mm |
| Package / Case | 8-DIP | 4-DIP (0.300", 7.62mm), 4-SMD, Gull Wing, 6-DIP, 6-SMD, 4-SOP, 8-DIP, 4-SIP, 8-SMD, 8-SOP |
| Package / Case | 7.62 mm | 4.4 - 7.62 mm |
| Package / Case | - | 0.3 in |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 0.173 in |
| Qualification | - | AEC-Q101 |
| Supplier Device Package | 8-DIP | 4-DIP, 4-SOP, 6-DIP, 8-SMD, 6-SMD, 8-DIP, 4-SIP, 8-SOP |
| Termination Style | PC Pin | PC Pin, Gull Wing |
| Voltage - Input | 1.17 VDC | 1.17 - 1.37 VDC |
| Voltage - Input | - | 1.5 VDC |
| Voltage - Input | - | 1 V |
| Voltage - Load [Max] | 60 V | 60 - 1700 V |
| Voltage - Load [Min] | 0 V | 0 V |
- Series
SSR RELAY SPST-NO 550MA 0-60V
| Part | Voltage - Input | Package / Case | Supplier Device Package | Termination Style | Voltage - Load [Min] | Voltage - Load [Max] | Mounting Type | On-State Resistance (Max) [Max] | Load Current | Output Type | Package / Case | Package / Case | Circuit | Voltage - Input [Max] | Voltage - Input [Min] | Package / Case | On-State Resistance (Max) | Qualification | Grade | Package / Case [custom] | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bright Toward Industrial Co., Ltd. AB37 | 1.17 VDC | 4-DIP (0.300", 7.62mm) | 4-DIP | PC Pin | 0 V | 60 V | Through Hole | 1.6 Ohms | 550 mA | AC, DC | |||||||||||
Bright Toward Industrial Co., Ltd. AB26S | 1.37 VDC | 4-SMD, Gull Wing | 4-SOP | Gull Wing | Surface Mount | 43 mOhms | 3.5 A | AC, DC | |||||||||||||
Bright Toward Industrial Co., Ltd. AA52 | 1.33 VDC | 6-DIP | 6-DIP | PC Pin | 0 V | 1700 V | Through Hole | 350 mA | AC, DC | 0.3 in | 7.62 mm | ||||||||||
Bright Toward Industrial Co., Ltd. AC30F | 8-SMD | Surface Mount | 30 Ohm | 100 mA | DC | SPST-NO (1 Form A) x 2 | 1.5 VDC | 1 V | |||||||||||||
Bright Toward Industrial Co., Ltd. AA36F | 1.37 VDC | 6-SMD | 6-SMD | Gull Wing | 0 V | 60 V | Surface Mount | 100 mOhms | 2.5 A | AC, DC | 0.3 in | 7.62 mm | |||||||||
Bright Toward Industrial Co., Ltd. AA38 | 1.17 VDC | 6-DIP | 6-DIP | PC Pin | 0 V | 600 V | Through Hole | 60 Ohm | 80 mA | AC, DC | 0.3 in | 7.62 mm | |||||||||
Bright Toward Industrial Co., Ltd. AB30S | 1.17 VDC | 4-SOP | 4-SOP | Gull Wing | Surface Mount | 24 Ohm | 100 mA | AC, DC | 0.173 in | 4.4 mm | |||||||||||
Bright Toward Industrial Co., Ltd. AA28 | 1.37 VDC | 6-SMD | 6-SMD | Gull Wing | Surface Mount | 30 mOhms | 4.5 A | AC, DC | 0.3 in | 7.62 mm | |||||||||||
Bright Toward Industrial Co., Ltd. AA58F | 1.33 VDC | 6-SMD | 6-SMD | Gull Wing | 0 V | 1700 V | Surface Mount | 180 Ohms | 30 mA | AC, DC | 0.3 in | 7.62 mm | |||||||||
Bright Toward Industrial Co., Ltd. AA36 | 1.37 VDC | 6-DIP | 6-DIP | PC Pin | 0 V | 60 V | Through Hole | 100 mOhms | 2.5 A | AC, DC | 0.3 in | 7.62 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.56 | |
| 10 | $ 4.86 | |||
| 25 | $ 4.60 | |||
| 50 | $ 4.42 | |||
| 100 | $ 4.24 | |||
| 250 | $ 4.02 | |||
| 500 | $ 3.86 | |||
| 1000 | $ 3.70 | |||
Description
General part information
- Series
Solid State SPST-NO (1 Form A) x 2 8-DIP (0.300", 7.62mm)
Documents
Technical documentation and resources
