Description
General part information

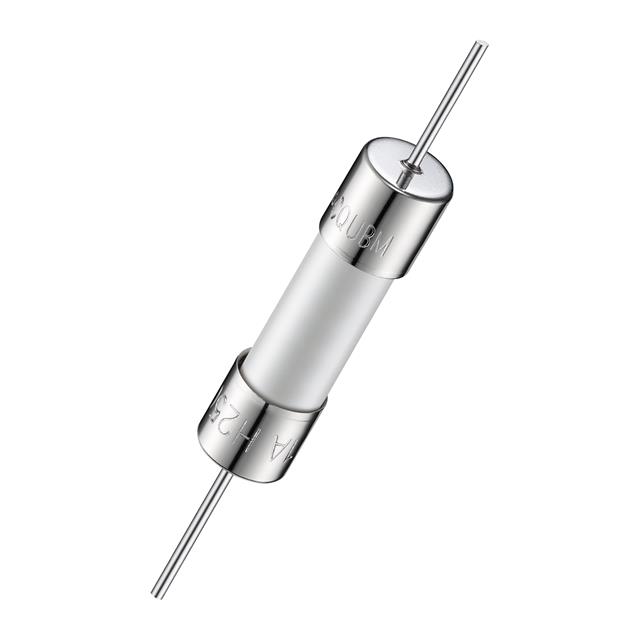

TUC UBM-P 8A 250V (PF)
8 A 250 V AC DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
Technical Specifications
Parameters and characteristics for this part
| Specification | TUC UBM-P 8A 250V (PF) |
|---|---|
| Approval Agency | cURus, CCC, TUV, KC, PSE |
| Breaking Capacity | 1.5 kA |
| Current Rating | 8 A |
| DC Cold Resistance | 0.0098 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 79.488 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case Interfaces | Axial |
| Package Features | Axial |
| Package Height | 0 mm |
| Package Length | 5 mm |
| Package Name | 5mm x 20mm |
| Package Width | 20 mm |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.205 in |
| Size / Dimension Length | 0.787 in |
| Voltage Rating - AC | 250 V |
