2954934

Active

Phoenix Contact

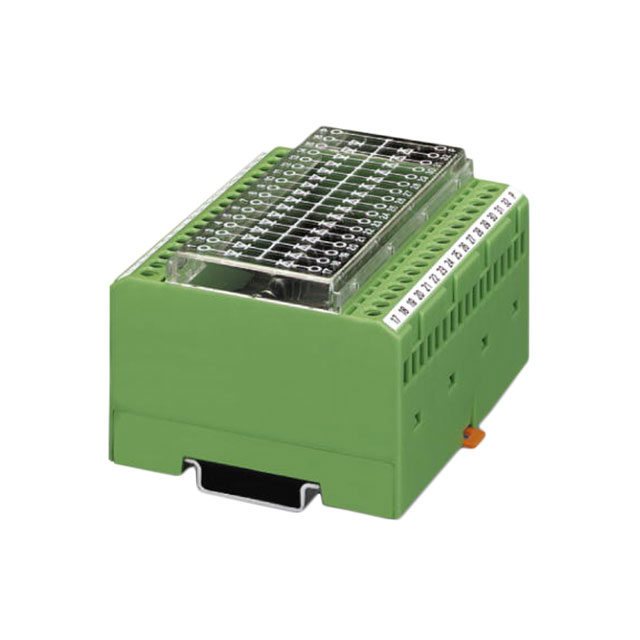

DIODE MODULE GP 1300V

Search across all available documentation for this part.

Active

Phoenix Contact

DIODE MODULE GP 1300V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2954934	29549 Series

Current - Average Rectified (Io) (per Diode)	-	700 mA
Current - Reverse Leakage @ Vr	5 µA	5 µA
Diode Configuration	32 Common Anode	32 Common Cathode, 32 Common Anode
Mounting Type	DIN Rail	DIN Rail
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-20 °C	-20 °C
Package / Case	Module	Module
Speed	-	Standard Recovery >500ns
Speed	-	200 mA
Supplier Device Package	Module	Module
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1300 V	1300 V
Voltage - Forward (Vf) (Max) @ If	-	800 mV

DIODE BLOCK, 32, 0.7A, COMMON CATHODE ROHS COMPLIANT: YES

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Current - Reverse Leakage @ Vr	Diode Configuration	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Current - Average Rectified (Io) (per Diode)	Technology	Supplier Device Package
Phoenix Contact 2954918	1300 V	DIN Rail	5 µA	32 Common Cathode	Standard Recovery >500ns	200 mA	800 mV	150 °C	-20 °C	Module	700 mA	Standard	Module
Phoenix Contact 2954934	1300 V	DIN Rail	5 µA	32 Common Anode				150 °C	-20 °C	Module		Standard	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 263.56

General part information

Diode Array 32 Common Anode 1300 V DIN Rail Module
