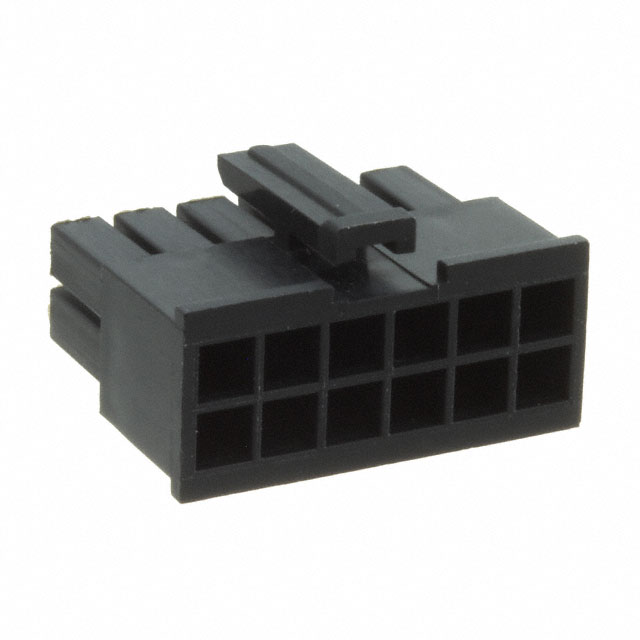

10132445-12LF

Active

Amphenol ICC (FCI)

CONN RCPT HSG 12POS 3.00MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents10142744-06LF minitek pwr productpresentation Other Related Document +2

10132445-12LF

Active

Amphenol ICC (FCI)

CONN RCPT HSG 12POS 3.00MM

Deep-Dive with AI

Documents10142744-06LF minitek pwr productpresentation Other Related Document +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10132445-12LF

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Glow Wire Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3 mm
Pitch [x]	0.118 in
Row Spacing [x]	0.118 in
Row Spacing [x]	3 mm

10132445 Series

Part	Note	Color	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing [x]	Number of Positions	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Mounting Type	Number of Rows	Contact Type	Insulation Material	Features	Fastening Type	Number of Positions
Amphenol ICC (FCI) 10132445-12LF	Contacts Not Included	Black	3 mm	0.118 in	0.118 in	3 mm	12	Receptacle	85 °C	-40 °C	Crimp	Free Hanging (In-Line)	2	Female Socket	Polyamide (PA66) Nylon 6/6	Glow Wire Compliant	Latch Holder
Amphenol ICC (FCI) 10132445-16LF	Contacts Not Included	Black	3 mm	0.118 in	0.118 in	3 mm		Receptacle	85 °C	-40 °C	Crimp	Free Hanging (In-Line)	2	Female Socket	Polyamide (PA66) Nylon 6/6	Glow Wire Compliant	Latch Holder	16
Amphenol ICC (FCI) 10132445-18LF	Contacts Not Included	Black	3 mm	0.118 in	0.118 in	3 mm	18	Receptacle	85 °C	-40 °C	Crimp	Free Hanging (In-Line)	2	Female Socket	Polyamide (PA66) Nylon 6/6	Glow Wire Compliant	Latch Holder
Amphenol ICC (FCI) 10132445-22LF	Contacts Not Included	Black	3 mm	0.118 in	0.118 in	3 mm	22 positions	Receptacle	85 °C	-40 °C	Crimp	Free Hanging (In-Line)	2	Female Socket	Polyamide (PA66) Nylon 6/6	Glow Wire Compliant	Latch Holder
Amphenol ICC (FCI) 10132445-20LF	Contacts Not Included	Black	3 mm	0.118 in	0.118 in	3 mm	20	Receptacle	85 °C	-40 °C	Crimp	Free Hanging (In-Line)	2	Female Socket	Polyamide (PA66) Nylon 6/6	Glow Wire Compliant	Latch Holder
Amphenol ICC (FCI) 10132445-14LF	Contacts Not Included	Black	3 mm	0.118 in	0.118 in	3 mm	14	Receptacle	85 °C	-40 °C	Crimp	Free Hanging (In-Line)	2	Female Socket	Polyamide (PA66) Nylon 6/6	Glow Wire Compliant	Latch Holder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.30
		10	$ 0.23
		100	$ 0.17
		500	$ 0.14
		1000	$ 0.13
		5000	$ 0.13

Description

General part information

10132445 Series

12 Rectangular Connectors - Housings Receptacle Black 0.118" (3.00mm)

Documents

Technical documentation and resources

10132445-12LF

Deep-Dive with AI

10132445-12LF

Deep-Dive with AI

Technical Specifications

10132445 Series

Pricing

Description

10132445 Series

Documents

10142744-06LF

minitek pwr productpresentation Other Related Document

10159387-004

Datasheet

10132445 Series
