1420CF
ActiveKanebridge

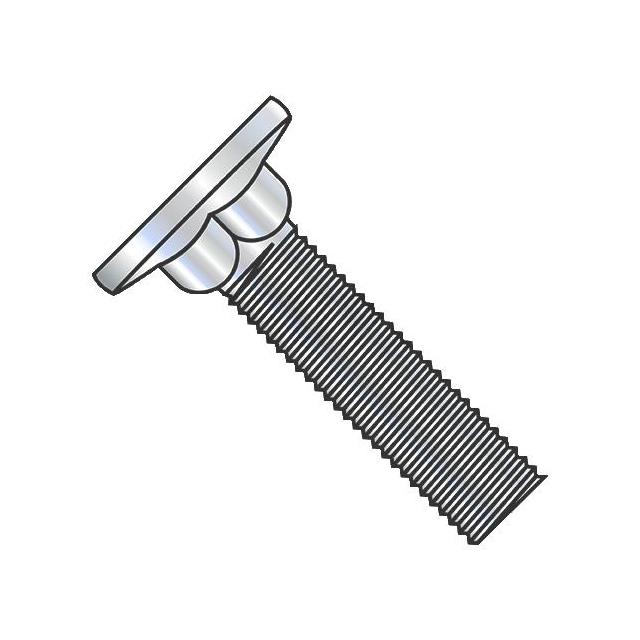

CARRIAGE BOLT - SQUARE NECK FLAT
1420CF
ActiveKanebridge
CARRIAGE BOLT - SQUARE NECK FLAT
Description
General part information
1420CF
1/4"-20 Flat Head Carriage Bolt Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1420CF |
|---|---|
| Features | Standard |
| Head Diameter | 0.605 in |
| Head Height | 0.093 in |
| Length - Below Head | 1.25 in |
| Length - Overall | 1.343 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Flat Head |
| Thread Pitch (TPI) | 20 TPI |
| Thread Size (Nominal) | 0.25 in |
| Type | Carriage Bolt |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
