4-1102700-5
ActiveTE Connectivity AMP Connectors

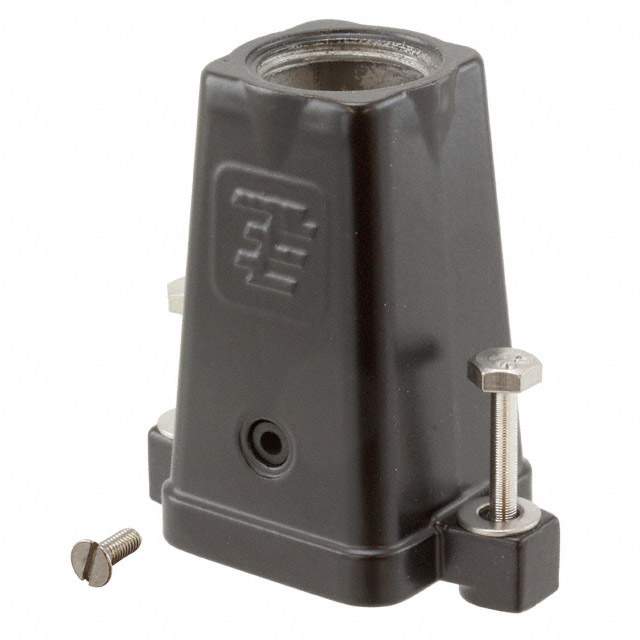

CONN HOOD TOP ENTRY SZ1 PG11
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4-1102700-5
ActiveTE Connectivity AMP Connectors
CONN HOOD TOP ENTRY SZ1 PG11
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4-1102700-5 |
|---|---|
| Connector Type | Hood |
| Housing Color | Black |
| Housing Finish | Chromite TCP Passivation |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Lock Location | Screw Locks on Hood |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Size | 1 Gallon |
| Style | Top Entry |
| Thread Size | PG11 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 80 | $ 98.22 | |
1102700 Series
CONN HOOD TOP ENTRY SZ1 PG11
| Part | Size | Housing Material | Connector Type | Ingress Protection | Housing Color | Lock Location | Style | Thread Size | Housing Finish | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 4-1102700-5 | 1 Gallon | Aluminum Alloy, Die Cast | Hood | IP68 - Dust Tight, Waterproof | Black | Screw Locks on Hood | Top Entry | PG11 | Chromite TCP Passivation | -40 °C | 80 C |
Description
General part information
1102700 Series
Hood Connector Top Entry PG11 1 IP68 - Dust Tight, Waterproof
