Description
General part information

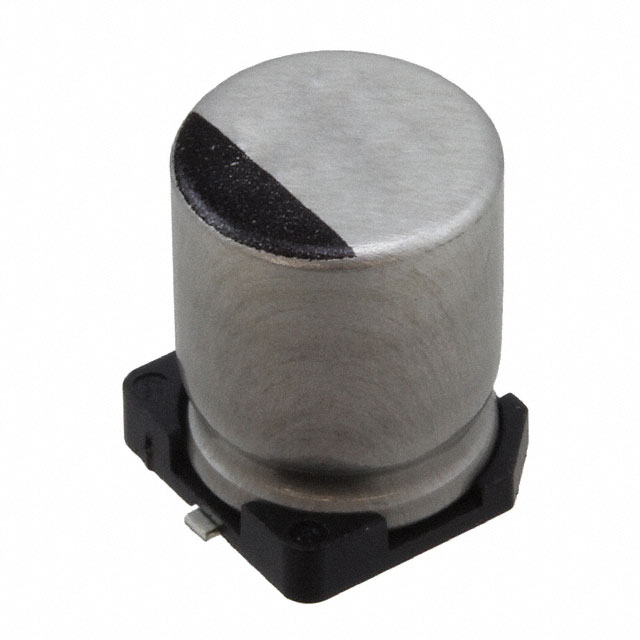

63SGV33M8X10.5
33 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 63SGV33M8X10.5 |
|---|---|
| Applications | Automotive |
| Capacitance | 33 µF |
| Height - Seated (Max) | 0.413 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 172.5 mA, 115 mA |
| Size / Dimension Diameter | 0.315 in |
| Surface Mount Land Length | 0.327 in |
| Surface Mount Land Width | 0.327 in |
| Tolerance | 20 % |
| Voltage - Rated | 63 V |
