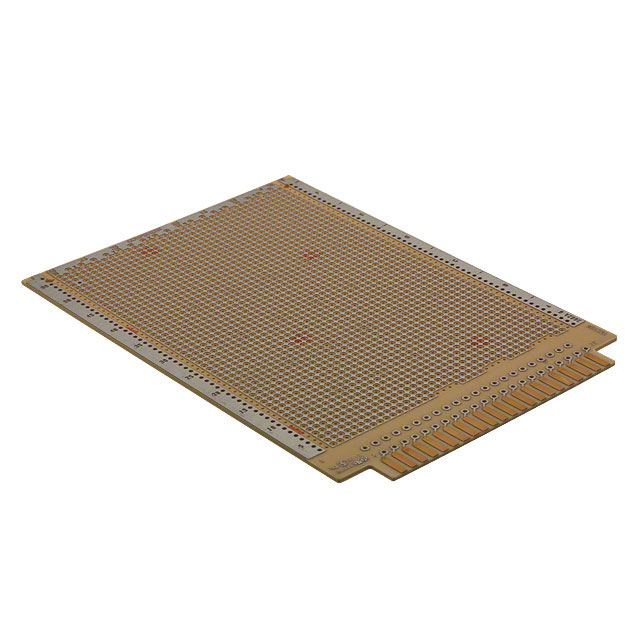

3662A6

Active

Vector Electronics

PLUGBOARD CARD EDGE NPTH

Search across all available documentation for this part.

Active

Vector Electronics

PLUGBOARD CARD EDGE NPTH

Technical Specifications

Parameters and characteristics for this part

Specification	3662A6

Board Thickness	0.062 in
Board Thickness	0.0625 in
Board Thickness	1.57 mm
Circuit Pattern	Pad Per Hole (Round), Ground Plane
Edge Contacts	0.156 in, 44
Edge Contacts	3.96 mm
Hole Diameter	0.042 " (inches)
Hole Diameter	1.07 mm
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Plating	Non-Plated Through Hole (NPTH)
Proto Board Type	Plugboard, Card Edge
Size / Dimension [x]	165.1 mm
Size / Dimension [x]	6.5 in
Size / Dimension [y]	4.5 in
Size / Dimension [y]	114.3 mm

PLUGBOARD CARD EDGE NPTH

Part	Plating	Board Thickness	Board Thickness	Board Thickness	Pitch [x]	Pitch [x]	Hole Diameter	Hole Diameter	Circuit Pattern	Edge Contacts	Edge Contacts	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Proto Board Type
Vector Electronics 3662A6	Non-Plated Through Hole (NPTH)	0.062 in	0.0625 in	1.57 mm	2.54 mm	0.1 in	0.042 " (inches)	1.07 mm	Ground Plane, Pad Per Hole (Round)	0.156 in, 44	3.96 mm	165.1 mm	4.5 in	114.3 mm	6.5 in	Plugboard, Card Edge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Plugboard, Card Edge Non-Plated Through Hole (NPTH) Pad Per Hole (Round), Ground Plane 0.100" (2.54mm)
