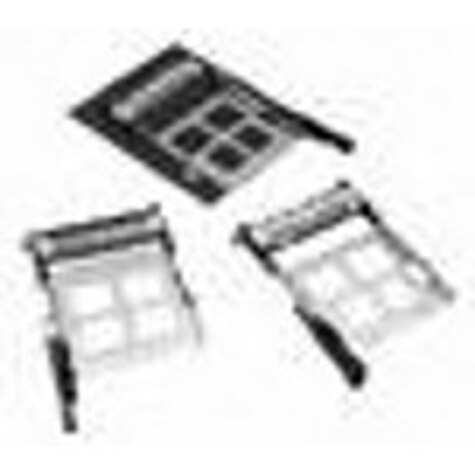

Specification	IC11S-BD-PEJR(71)

Card Type	Type I, PCMCIA - CardBus, III, II
Connector Type	Ejector
Ejector Side	Right
Features	Pop Up Ejector
Insertion, Removal Method	Push In, Push Out
Mounting Feature	Top, Normal, Standard
Mounting Type	Snap-In

IC11S Series

Memory Card Connectors EJECTOR GUIDE RIGHT POP-UP

Part	Ejector Side	Mounting Feature	Card Type	Height Above Board	Connector Type	Insertion, Removal Method	Features	Number of Positions	Mounting Type	Contact Finish	Accessory Type
Hirose Electric Co Ltd IC11SU-PL-SF-EJR(71)
Hirose Electric Co Ltd IC11S-68PL-1.27SF-EJR	Right	Normal Standard Top	II III PCMCIA - CardBus Type I	0.22 in	Connector Ejector	Push In Push Out	Board Guide Card Guide	68	Right Angle Surface Mount	Gold
Hirose Electric Co Ltd IC11S-PLR-SF-EJL(71)	Left	Bottom Reverse	II III PCMCIA - CardBus Type I	0.22 in	Connector Ejector	Push In Push Out	Board Guide Card Guide	68	Right Angle Surface Mount	Gold
Hirose Electric Co Ltd IC11SA-68PL-1.27SF-EJR	Right	Normal Standard Top	II III PCMCIA - CardBus Type I	0.307 in	Connector Ejector	Push In Push Out	Board Guide Card Guide	68	Right Angle Surface Mount	Gold
Hirose Electric Co Ltd IC11SA-BD-FEJL	Left	Normal Standard Top	II III PCMCIA - CardBus Type I		Ejector	Push In Push Out			Snap-In
Hirose Electric Co Ltd IC11SA-BD-L											Card Guide
Hirose Electric Co Ltd IC11S-68PL-1.27SF-EJL	Left	Normal Standard Top	II III PCMCIA - CardBus Type I	0.22 in	Connector Ejector	Push In Push Out	Board Guide Card Guide	68	Right Angle Surface Mount	Gold
Hirose Electric Co Ltd IC11S-BD-EJL	Left	Normal Standard Top	II III PCMCIA - CardBus Type I		Ejector	Push In Push Out			Snap-In
Hirose Electric Co Ltd IC11S-PL-SF-EJL(71)	Left	Normal Standard Top	II III PCMCIA - CardBus Type I	0.22 in	Connector Ejector	Push In Push Out	Board Guide Card Guide	68	Right Angle Surface Mount	Gold
Hirose Electric Co Ltd IC11SA-BUR-PEJL(71)	Left	Bottom Reverse	II III PCMCIA - CardBus Type I		Ejector	Push In Push Out	Pop Up Ejector		Snap-In

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

IC11S-BD-PEJR(71) | Datasheet
