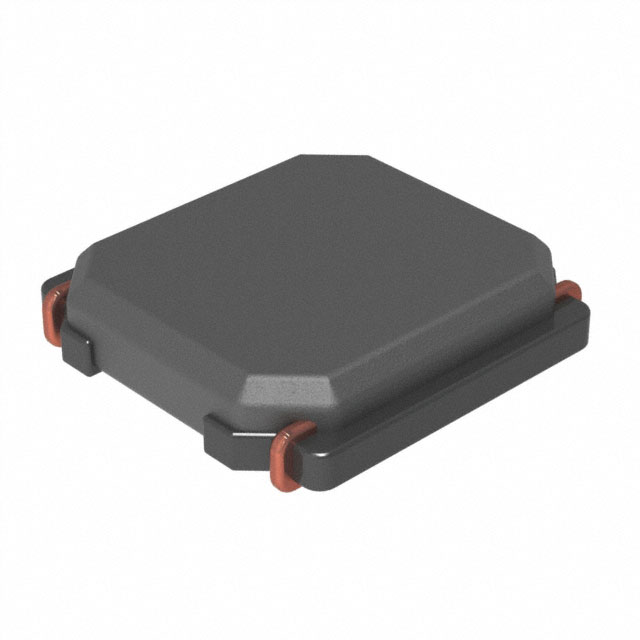

LMLP0404M220CTAS
ActiveKYOCERA AVX
FIXED IND 22UH 400MA 870MOHM SMD
LMLP0404M220CTAS
ActiveKYOCERA AVX
FIXED IND 22UH 400MA 870MOHM SMD
Description
General part information
LMLP0404M220CTAS
22 µH Shielded Inductor 400 mA 870mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | LMLP0404M220CTAS |
|---|---|
| Current - Saturation (Isat) | 0.36 mA |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 870 mOhm |
| Height - Seated (Max) | 0.039 in |
| Inductance | 22 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.157 in |
| Size / Dimension Width | 0.157 in |
| Tolerance | 20 % |
