Description

General part information

ST0228-30-003-A

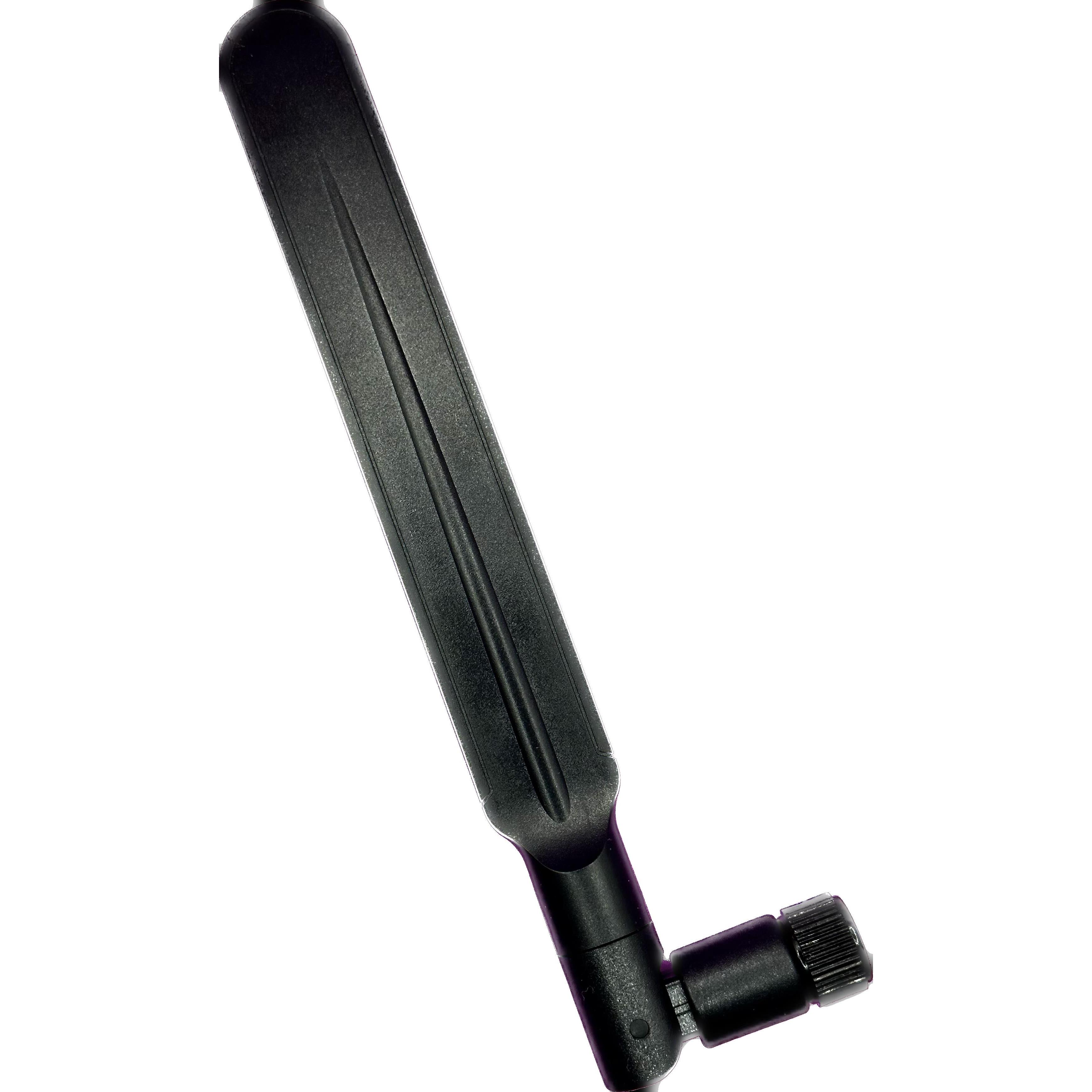

2.45GHz, 5.487GHz IoT, Wi-Fi Whip, Tilt RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz 2.1dBi, 3.1dBi SMA Connector Mount

Technical Specifications

Parameters and characteristics for this part

SpecificationST0228-30-003-A
Antenna TypeTilt, Whip
ApplicationsIoT, Wi-Fi
Frequency (Band)5.487 GHz
Frequency (Center)2.45 GHz
Frequency GroupSHF, UHF
Frequency Group Maximum (UHF)3 GHz
Frequency Group Minimum (SHF)4 GHz
Frequency Group Minimum (UHF)2 GHz
Frequency Range (Band 1) Maximum2.5 GHz
Frequency Range (Band 1) Minimum2.4 GHz
Frequency Range (Band 2) Maximum5.825 GHz
Frequency Range (Band 2) Minimum5.15 GHz
Gain2.1 dBi, 3.1 dBi
Height (Max)6.791 in
Mounting TypeConnector Mount
Number of Bands2
Power - Max1 VA
Return Loss-10 dB
RF Family/StandardWiFi
TerminationSMA
