ICS12L50F04NOM1E1
ActiveCarlo Gavazzi Inc.

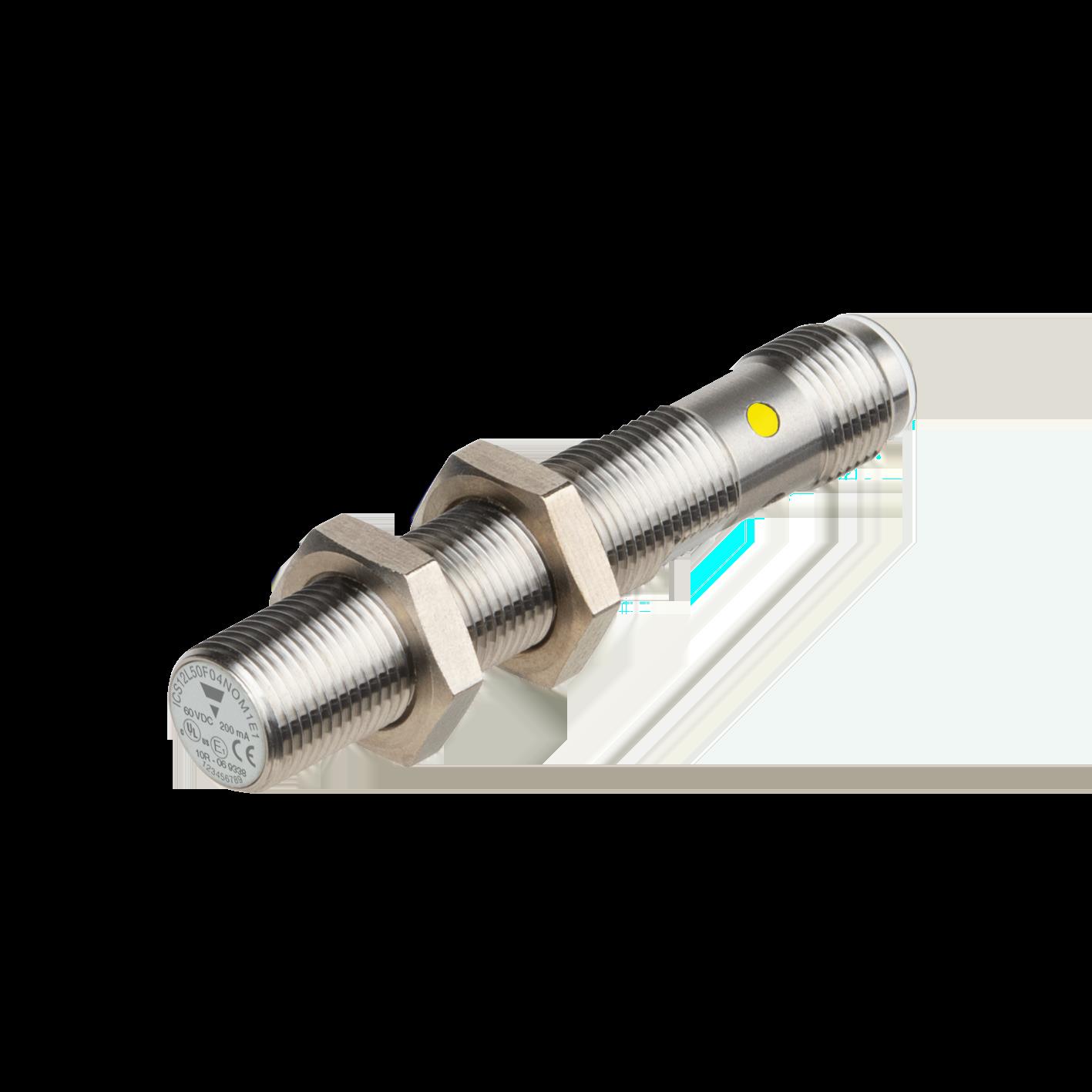

SENSOR PROX INDUCTIVE 4MM CYLIND
ICS12L50F04NOM1E1
ActiveCarlo Gavazzi Inc.
SENSOR PROX INDUCTIVE 4MM CYLIND
Description
General part information
ICS12L50F04NOM1E1
SENSOR PROX INDUCTIVE 4MM CYLIND
Technical Specifications
Parameters and characteristics for this part
| Specification | ICS12L50F04NOM1E1 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68, IP67, IP69K |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | NPN-NO, 4-Wire |
| Package / Case | Threaded - M12, Cylinder |
| Sensing Distance | 0.157 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 60 V |
| Voltage - Supply (Minimum) | 8 V |
