BIF-83
ActivePasternack
CONN BNC M INSULATED RG58
BIF-83
ActivePasternack
CONN BNC M INSULATED RG58
Description
General part information
BIF-83

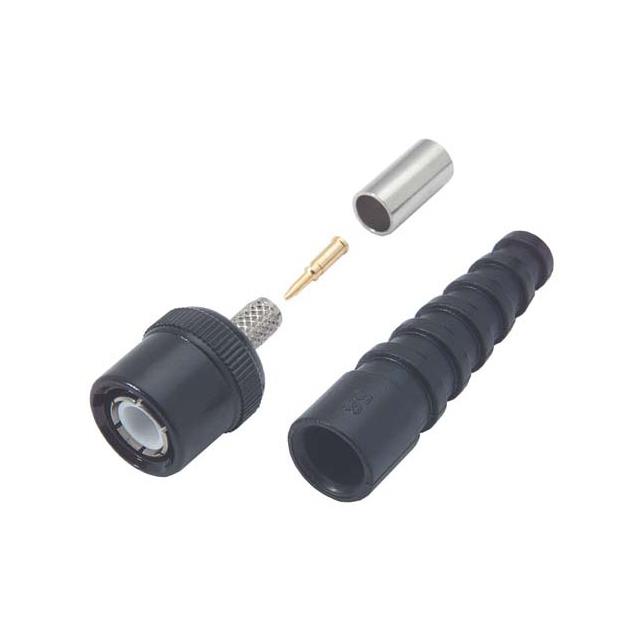

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | BIF-83 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-58 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Bayonet Lock |
| Housing Color | Black |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
