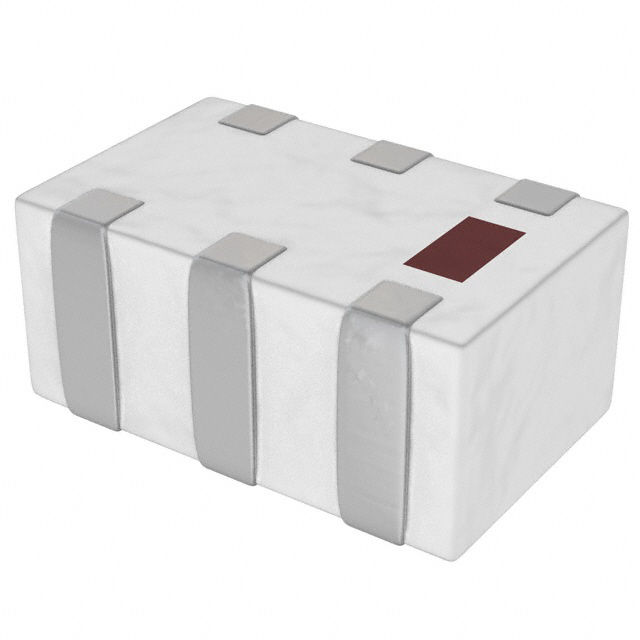

2450DP15D5400001E
ActiveJohanson Technology Inc.
RF DIPLEXER 2.45GHZ/5.4GHZ 0805
2450DP15D5400001E
ActiveJohanson Technology Inc.
RF DIPLEXER 2.45GHZ/5.4GHZ 0805
Description
General part information
2450DP15D5400001E
RF Diplexer 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2450DP15D5400001E |
|---|---|
| Frequency Bands (High) Maximum | 5.9 GHz |
| Frequency Bands (High) Minimum | 4.9 GHz |
| Frequency Bands (Low) Maximum | 2.5 GHz |
| Frequency Bands (Low) Minimum | 2.4 GHz |
| High Band Attenuation (Max) | 1.4 dB |
| High Band Attenuation (Min) | 19 dB |
| Low Band Attenuation (Max) | 0.7 dB |
| Low Band Attenuation (Min) | 20 dB |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Return Loss (High Band) | 9.5 dB |
| Return Loss (Low Band) | 9.5 dB |
| Type | Diplexer |
