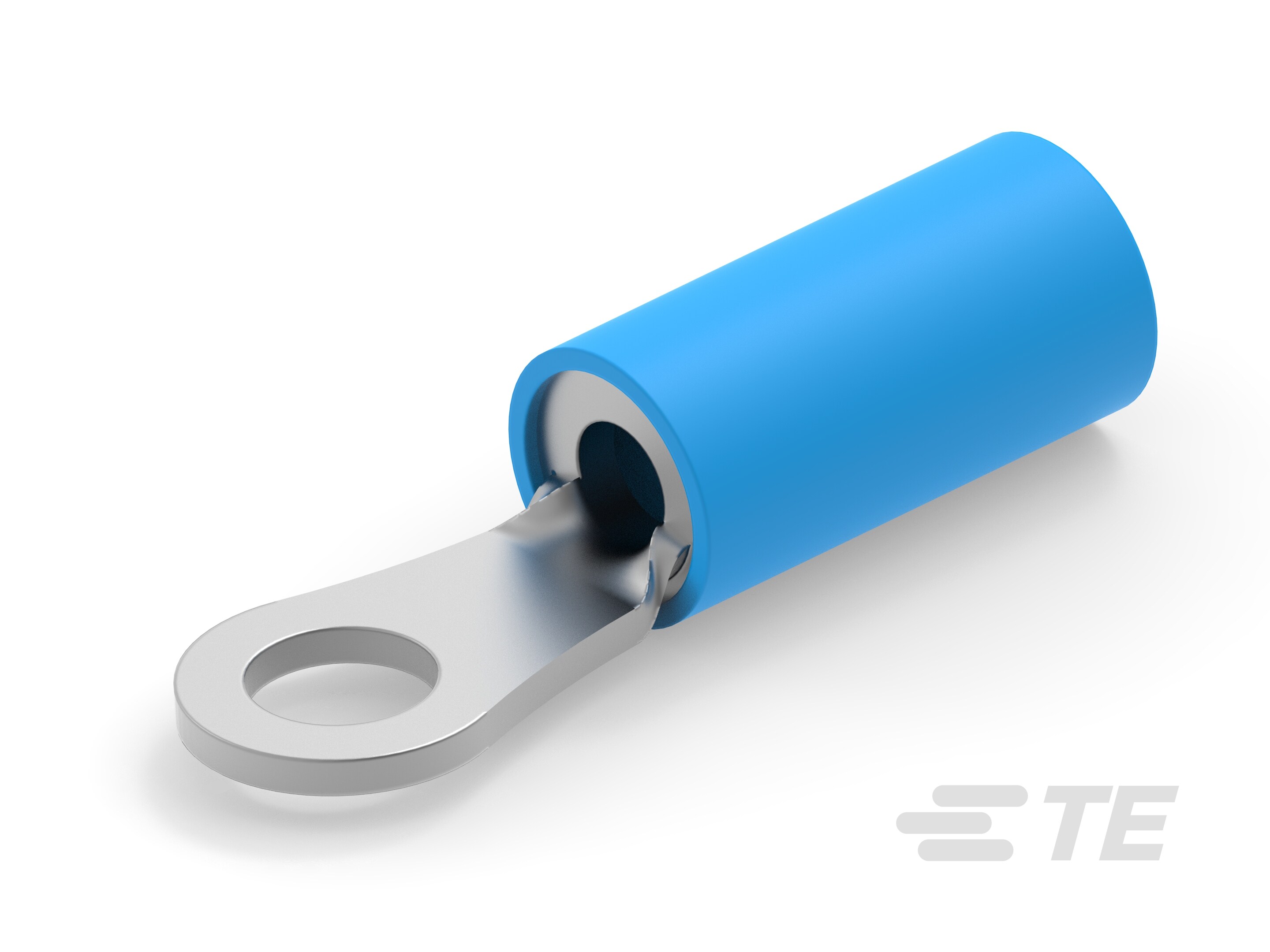

TERMINAL,PIDG, RT, IR, 16 AWG, #6 STUD-1958448-1

1958448-1

Active
TE Connectivity AMP Connectors

TERMINAL,PIDG, RT, IR, 16 AWG, #6 STUD

Find alt
TERMINAL,PIDG, RT, IR, 16 AWG, #6 STUD-1958448-1

1958448-1

Active
TE Connectivity AMP Connectors

TERMINAL,PIDG, RT, IR, 16 AWG, #6 STUD

Find alt

Description

General part information

1958448-1

Closed Ring Tongue Terminal, 16 AWG, #6 / M3.5 Stud, 3.68 mm [.145 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG

Technical Specifications

Parameters and characteristics for this part

Specification1958448-1
ColorBlue
Contact FinishTin
Contact MaterialCopper
InsulationInsulated
Length - Overall0.843 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size6 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.031 in
Width - Outer Edges0.25 in
Wire Gauge16 AWG
