300028
ActiveMcGill Microwave Systems
CONN PLUG MALE 4P GOLD SLDR CUP
300028
ActiveMcGill Microwave Systems
CONN PLUG MALE 4P GOLD SLDR CUP
Description
General part information
300028

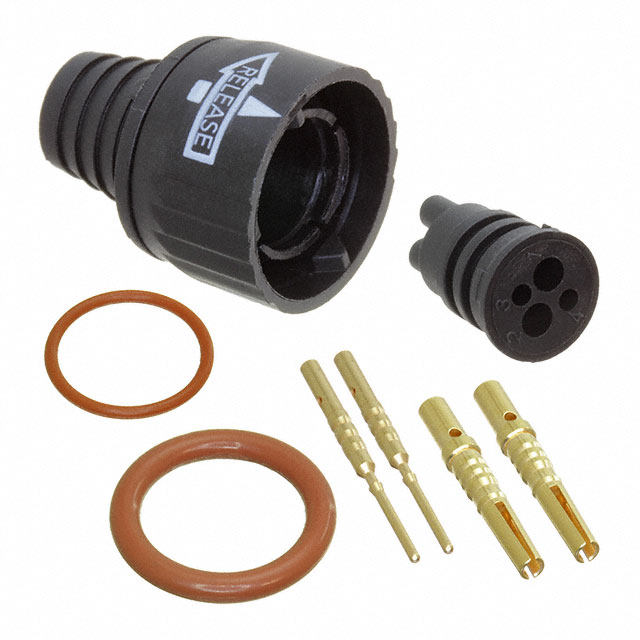

4 Position Circular Connector Plug, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 300028 |
|---|---|
| Applications | Medical |
| Color | Black |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10 µin |
| Contact Material | Brass |
| Current Rating Options | 7A, 3A |
| Fastening Type | Latch Lock |
| Features | Strain Relief |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Orientation Angle | 1 ° |
| Primary Material | Plastic |
| Shell Material | Thermoplastic |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 300 VAC/DC |
