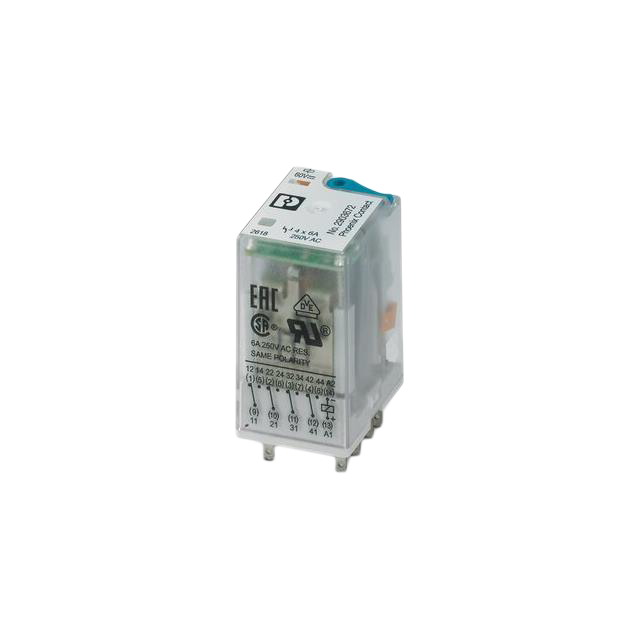

Specification	2903672

Approval Agency	UL, VDE, cULus, EAC
Coil Current	18 mA
Coil Resistance	3.3 kOhms
Coil Type	Non Latching
Coil Voltage	60 VDC
Contact Form	PDT, 4, Form, C
Contact Material	Gold (Au), Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Diode, Mechanical Indicator, Test Button
Mounting Type	Socketable
Operate Time	13 ms
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Pin Count	4
Relay Type	General Purpose
Release Time	14 ms
Switching Voltage AC (Max)	250 VAC
Switching Voltage DC (Max)	250 VDC
Termination Style	Plug In

29036 Series

Part	Contact Rating (Current)	Coil Voltage	Coil Type	Relay Type	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Approval Agency	Pin Count	Contact Form	Release Time	Operate Time	Mounting Type	Coil Current	Contact Material	Switching Voltage AC (Max)	Switching Voltage DC (Max)	Features	Coil Resistance
Phoenix Contact 2834119	5 A	110 V	Non Latching	General Purpose	-55 °C	70 °C	Plug In	cULus EAC UL VDE	4	4 C Form PDT	5 ms	13 ms	Socketable	10 mA	Silver Nickel (AgNi)	250 VAC	250 VDC
Phoenix Contact 2834054	10 A	24 VDC	Non Latching	General Purpose	-55 °C	70 °C	Plug In	cULus EAC UL VDE		2 2 Form C C DPDT Form	12 ms	10 ms	Socketable	46 mA	Silver (Ag)	250 VAC	250 VDC	Lighted Indicator Test Button	180 Ohms
