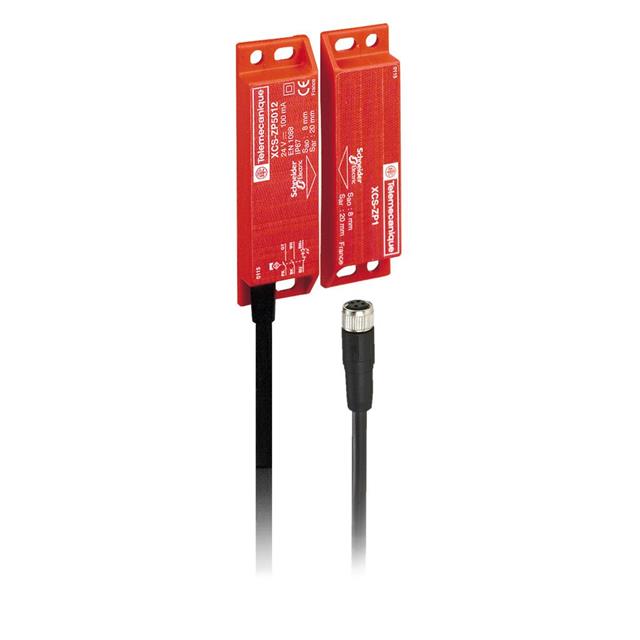

XCSDMP701L01M12
ActiveSCHNEIDER ELECTRIC
SAFETY INTER, MAG, RECT, WITH M12 CONN
XCSDMP701L01M12
ActiveSCHNEIDER ELECTRIC
SAFETY INTER, MAG, RECT, WITH M12 CONN
Description
General part information
XCSDMP701L01M12
SAFETY INTER, MAG, RECT, WITH M12 CONN
Technical Specifications
Parameters and characteristics for this part
| Specification | XCSDMP701L01M12 |
|---|---|
| Actuator Type | Non-Contact |
| Approval Agency | UL, CSA |
| Circuit | 3PST-2NC/1NO |
| Current Rating | 100 mA |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Must Operate (Length) | 8 mm |
| Must Release | 20 mm |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Cable with Connector (M12) |
| Type | Magnetic |
| Voltage Rating | 24 V |
