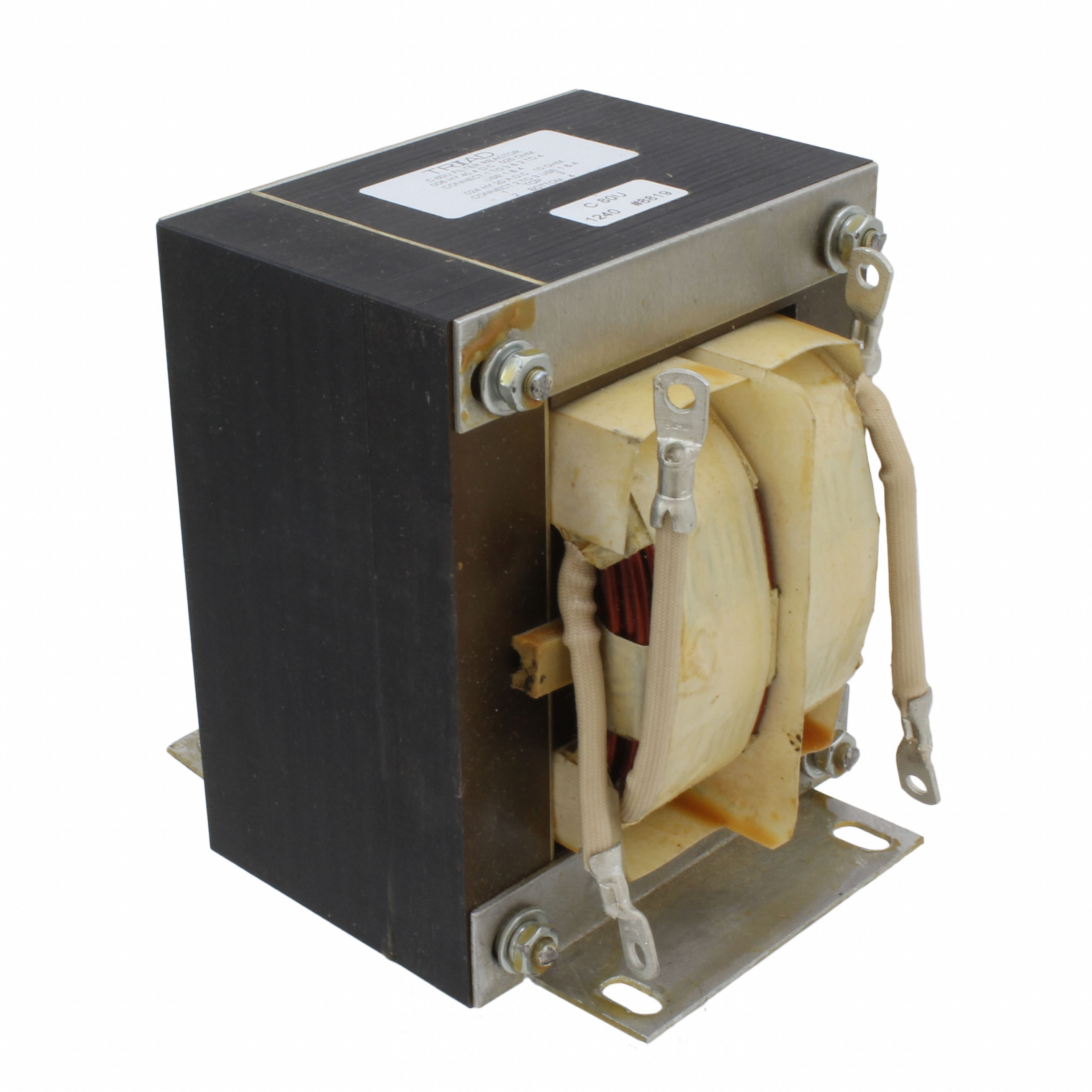

C-80U
24 mH Unshielded Wirewound Inductor 20 A 25mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | C-80U |
|---|---|
| Current Rating | 20 A |
| DC Resistance (DCR) | 100 mOhm, 25 mOhm |
| Height - Seated (Max) | 5.312 in |
| Inductance | 24 mH |
| Inductance Frequency - Test | 120 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 4.562 in |
| Size / Dimension Width | 5.5 in |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 50 % |
| Type | Wirewound |
