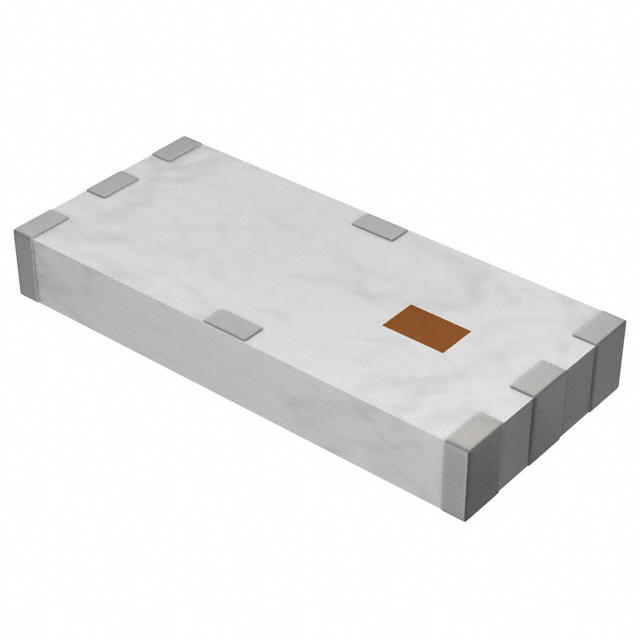

1575AT44A0010001E
ActiveJohanson Technology Inc.
RF ANT 1.575GHZ CHIP SOLDER SMD
1575AT44A0010001E
ActiveJohanson Technology Inc.
RF ANT 1.575GHZ CHIP SOLDER SMD
Description
General part information
1575AT44A0010001E
RF ANTENNA GPS Chip Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1575AT44A0010001E |
|---|---|
| Antenna Type | Chip |
| Applications | GPS |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.58 GHz |
| Frequency Range (Min) | 1.57 GHz |
| Gain | 0.5 dBi |
| Height (Max) | 0.059 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max | 2 VA |
| Return Loss | -9.5 dB |
| RF Family/Standard | Navigation |
| Termination | Solder |
