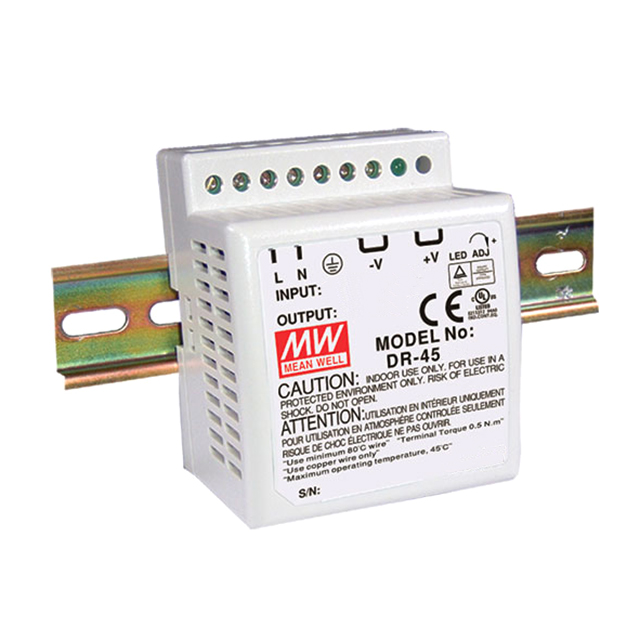

Specification	DR-4524

AC Voltage - Input (Max)	264 VAC
AC Voltage - Input (Min)	85 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	cULus, CE, CB, TUV
Current - Output (Max)	2 A
DC Voltage - Input (Max)	370 V
DC Voltage - Input (Min)	120 V
Efficiency	80 %
Features	Universal Input, Adjustable Output
Input Type	AC or DC, DC, AC
Minimum Load Required	No
Number of Outputs	1
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-10 °C
Power (Watts)	48 W
Size / Dimension Height	3.66 in
Size / Dimension Length	2.64 in
Size / Dimension Width	3.07 in
Voltage - Isolation	3 kV
Voltage - Output 1	24 V
