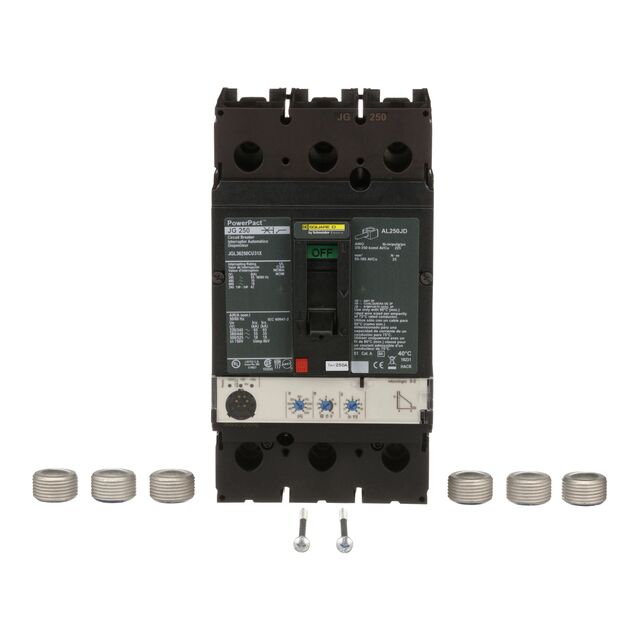

JGM36250U31X
ActiveSCHNEIDER ELECTRIC
MOLDED CASE CIRCUIT BREAKER 600V
JGM36250U31X
ActiveSCHNEIDER ELECTRIC
MOLDED CASE CIRCUIT BREAKER 600V
Description
General part information
JGM36250U31X
Circuit Breaker Solid State 250A 600 V AC DC Toggle Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | JGM36250U31X |
|---|---|
| Actuator Type | Toggle |
| Approval Agency | UL, CSA |
| Breaker Type | Solid State |
| Current Rating | 250 A |
| Illumination | Green, Orange, Red |
| Mounting Type | Chassis Mount |
| Number of Poles | 3 |
| Voltage Rating - AC | 600 VAC |
