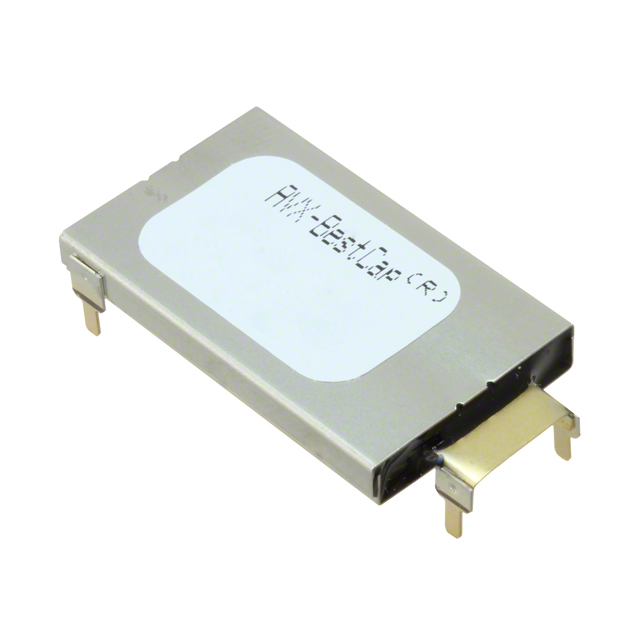

BZ015B603ZAB
ObsoleteKYOCERA AVX
CAPACITOR 60MF -20% +80% 5.5V TH
BZ015B603ZAB
ObsoleteKYOCERA AVX
CAPACITOR 60MF -20% +80% 5.5V TH
Description
General part information
BZ015B603ZAB
60 mF (EDLC) Supercapacitor 5.5 V BZ01, 4 Lead 96mOhm @ 1kHz 1000 Hrs @ 70°C
Technical Specifications
Parameters and characteristics for this part
| Specification | BZ015B603ZAB |
|---|---|
| Capacitance | 60 mF |
| ESR (Equivalent Series Resistance) | 96 mOhm |
| Height - Seated (Max) | 0.213 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package Leads | 4 Leads |
| Package Name | BZ01 |
| Size / Dimension Length | 1.102 in |
| Size / Dimension Width | 0.669 in |
| Termination | PC Pins |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 80 % |
| Voltage - Rated | 5.5 V |
