P056-006-10A
ObsoleteEaton Tripp Lite

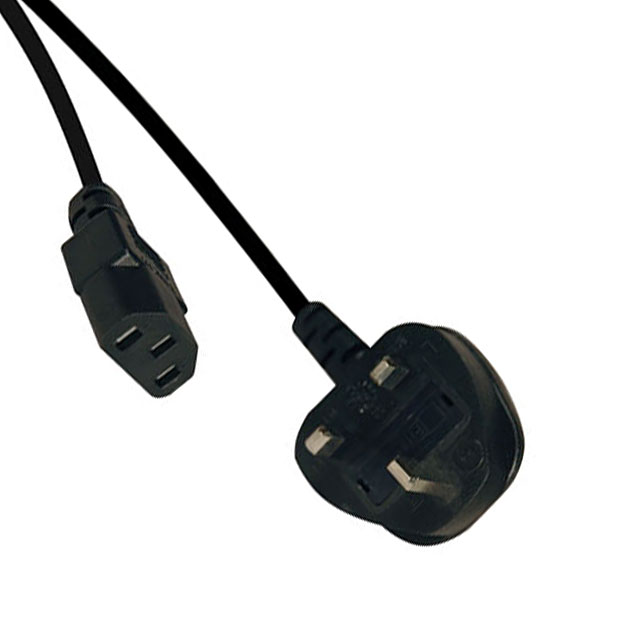

MAINS POWER CORD, BS 1363, IEC 60320 C13, 1.83 M, 10 A, 250 VAC, BLACK
P056-006-10A
ObsoleteEaton Tripp Lite
MAINS POWER CORD, BS 1363, IEC 60320 C13, 1.83 M, 10 A, 250 VAC, BLACK
Description
General part information
P056-006-10A
6.00' (1.83m) Power Cord Black BS1363A To IEC 320-C13 H05VV-F3G1.0
Technical Specifications
Parameters and characteristics for this part
| Specification | P056-006-10A |
|---|---|
| 1st Connector | BS1363A |
| 2nd Connector | IEC 320-C13 |
| Approval Agency Marking | CSA, cUL, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | H05VV-F3G1.0 |
| Current Rating | 10 A |
| Length | 6 ft |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 250 V |
| Wire Gauge | 18 AWG |
