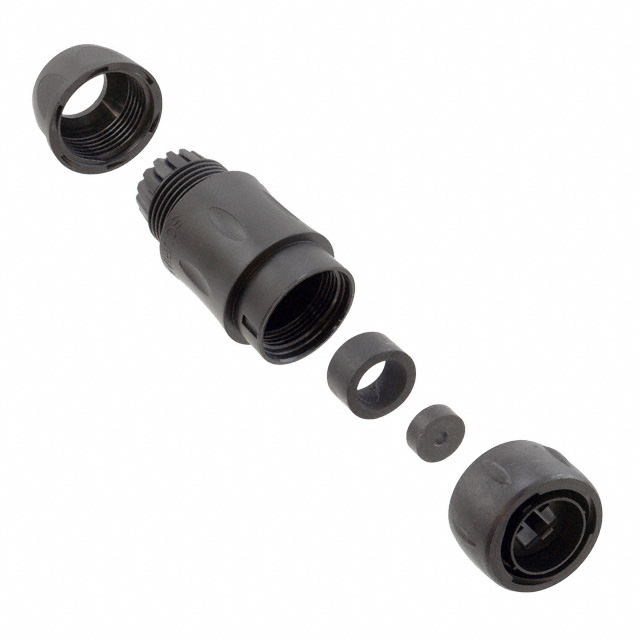

Specification	UTS6JC18RJN25

Connector Type	Housing for Prewired RJ45 Cordset
Fastening Type	Threaded
Features	Vibration Resistant, Toolless
Housing Material	Thermoplastic
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Mating Cycles	250 cycles
Mounting Type	Free Hanging (In-Line)
Note	Plug Not Provided
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Shielding	Unshielded

UTS6J Series

...

Part	Color	Number of Positions	Applications	Material Flammability Rating	Fastening Type	Termination	Shell Material	Contact Finish Thickness - Mating	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Shielding	Connector Type	Ingress Protection Description	Ingress Protection IP Rating	Current Rating	Backshell Material, Plating	Primary Material	Voltage Rating	Contact Finish - Mating	Features	Contact Material	Insert Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Orientation	Contact Shape	Shell Size - Insert Length	Shell Size - Insert Width	Note	Contact Type	Contact Size	Type	Housing Color	Position Types
Amphenol Aerospace Operations UTS6JC10E98SY	Black	6	Energy Instrumentation Lighting Telecommunications	UL94 V-0	Bayonet Lock	Solder Cup	Nylon Polyamide (PA)	16 µin	Free Hanging (In-Line)	-40 °C	105 °C	Unshielded	Female Sockets Plug	Dust Tight Water Resistant Waterproof	IP68 IP69K	6 A	Nylon Polyamide (PA)	Plastic	250 V	Gold	Backshell Coupling Nut UV Resistant	Brass	Polychloroprene	98	10	Y
Amphenol Aerospace Operations UTS6JC148P		8		UL94 V-0	Bayonet Lock		Thermoplastic		Free Hanging (In-Line)	-40 °C	105 °C	Unshielded	Plug Housing	Dust Tight Water Resistant Waterproof	IP68 IP69K						Backshell Coupling Nut					N (Normal)	Circular	14 mm	8 mm	Contacts Not Included	Crimp	12 16	For Male Pins	Black
Amphenol Aerospace Operations UTS6JC14E15S	Black	15	Energy Instrumentation Lighting Telecommunications	UL94 V-0	Bayonet Lock	Solder Cup	Nylon Polyamide (PA)	16 µin	Free Hanging (In-Line)	-40 °C	105 °C	Unshielded	Female Sockets Plug	Dust Tight Water Resistant Waterproof	IP68 IP69K	12 A	Nylon Polyamide (PA)	Plastic	600 V	Gold	Backshell Coupling Nut UV Resistant	Brass	Polychloroprene	15	14 S	N (Normal)
Amphenol Aerospace Operations UTS6JC1419S		19		UL94 V-0	Bayonet Lock		Thermoplastic		Free Hanging (In-Line)	-40 °C	105 °C	Unshielded	Plug Housing	Dust Tight Water Resistant Waterproof	IP68 IP69K						Backshell Coupling Nut			19	14 S	N (Normal)	Circular			Contacts Not Included	Crimp	20	For Female Sockets	Black
Amphenol Aerospace Operations UTS6JC142G1P		3		UL94 V-0	Bayonet Lock		Thermoplastic		Free Hanging (In-Line)	-40 °C	105 °C	Unshielded	Plug Housing	Dust Tight Water Resistant Waterproof	IP68 IP69K						Backshell Coupling Nut					N (Normal)	Circular	14 mm	2 mm	Contacts Not Included	Crimp	8	For Male Pins	Black	PE Power
Amphenol Aerospace Operations UTS6JC8E2S	Black	2	Energy Instrumentation Lighting Telecommunications	UL94 V-0	Bayonet Lock	Solder Cup	Nylon Polyamide (PA)	16 µin	Free Hanging (In-Line)	-40 °C	105 °C	Unshielded	Female Sockets Plug	Dust Tight Water Resistant Waterproof	IP68 IP69K	7 A	Nylon Polyamide (PA)	Plastic	250 V	Gold	Backshell Coupling Nut UV Resistant	Brass	Polychloroprene			N (Normal)		8 mm	2 mm
Amphenol Aerospace Operations UTS6JC104P		4		UL94 V-0	Bayonet Lock		Thermoplastic		Free Hanging (In-Line)	-40 °C	105 °C	Unshielded	Plug Housing	Dust Tight Water Resistant Waterproof	IP68 IP69K						Backshell Coupling Nut					N (Normal)	Circular	10 mm	4 mm	Contacts Not Included	Crimp	16 S	For Male Pins	Black
Amphenol Aerospace Operations UTS6JC12E8P	Black	8	Energy Instrumentation Lighting Telecommunications	UL94 V-0	Bayonet Lock	Solder Cup	Nylon Polyamide (PA)	16 µin	Free Hanging (In-Line)	-40 °C	105 °C	Unshielded	Male Pins Plug	Dust Tight Water Resistant Waterproof	IP68 IP69K	4.5 A	Nylon Polyamide (PA)	Plastic	250 V	Gold	Backshell Coupling Nut UV Resistant	Brass	Polychloroprene			N (Normal)		12 mm	8 mm
Amphenol Aerospace Operations UTS6JC10E98SX	Black	6	Energy Instrumentation Lighting Telecommunications	UL94 V-0	Bayonet Lock	Solder Cup	Nylon Polyamide (PA)	16 µin	Free Hanging (In-Line)	-40 °C	105 °C	Unshielded	Female Sockets Plug	Dust Tight Water Resistant Waterproof	IP68 IP69K	6 A	Nylon Polyamide (PA)	Plastic	250 V	Gold	Backshell Coupling Nut UV Resistant	Brass	Polychloroprene	98	10	X
Amphenol Aerospace Operations UTS6JC18-32P		32		UL94 V-0	Bayonet Lock		Thermoplastic		Free Hanging (In-Line)	-40 °C	105 °C	Unshielded	Plug Housing	Dust Tight Water Resistant Waterproof	IP68 IP69K						Backshell Coupling Nut			32	18	N (Normal)	Circular			Contacts Not Included	Crimp	20	For Male Pins	Black
