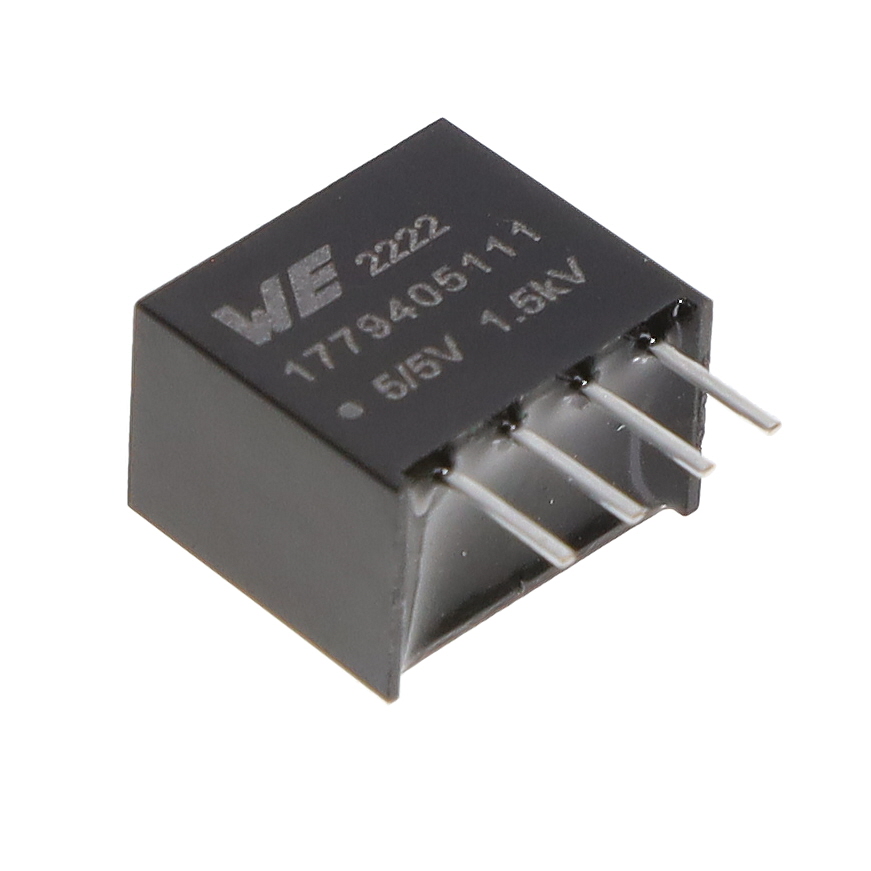

1779405111
ActiveWürth Elektronik
WPME-FISM FIXED ISOLATED SIP/SMT
1779405111
ActiveWürth Elektronik
WPME-FISM FIXED ISOLATED SIP/SMT
Description
General part information
1779405111
WPME-FISM FIXED ISOLATED SIP/SMT
Technical Specifications
Parameters and characteristics for this part
| Specification | 1779405111 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 400 mA |
| Efficiency | 83 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SIP Module |
| Power (Watts) | 2 w |
| Size / Dimension Height | 0.4 in |
| Size / Dimension Length | 0.46 in |
| Size / Dimension Width | 0.3 in |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) | 5.5 V |
| Voltage - Input (Min) | 4.5 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 5 V |
