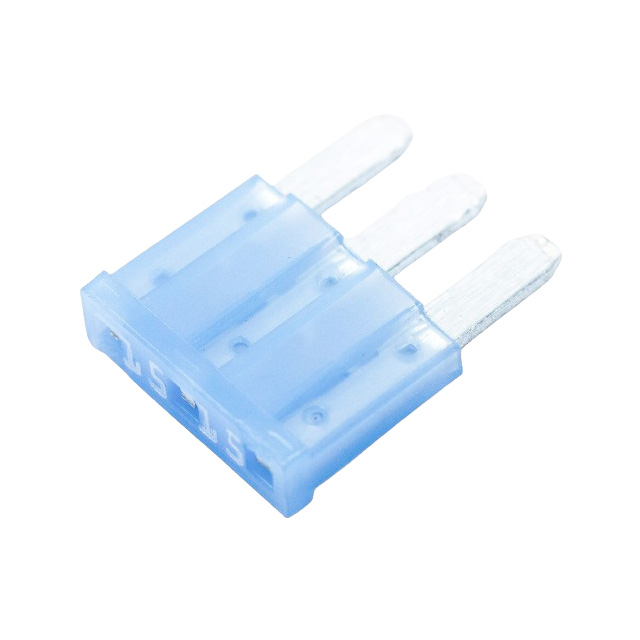

ANK-15A

Active

OptiFuse

FUSE AUTO 15A 32VDC BLADE MICRO

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 15A 32VDC BLADE MICRO

Technical Specifications

Parameters and characteristics for this part

Specification	ANK-15A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Blue
Current Rating (Amps)	15 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Micro
Response Time	Fast Blow
Size / Dimension [x]	0.563 in
Size / Dimension [x]	14.3 mm
Size / Dimension [y]	0.165 "
Size / Dimension [y]	4.2 mm
Size / Dimension [z]	10.6 mm
Size / Dimension [z]	0.417 "
Voltage Rating - DC	32 V

FUSE AUTO 15A 32VDC BLADE MICRO

Part	Mounting Type	Response Time	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Voltage Rating - DC	Fuse Type	Color	Package / Case	Approval Agency
OptiFuse ANK-15A	Requires Holder	Fast Blow	10.6 mm	0.165 "	0.563 in	0.417 "	14.3 mm	4.2 mm	1 kA	15 A	32 V	Automotive	Blue	Blade, Micro	ISO, SAE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 A AC 32 V DC Fuse Automotive Requires Holder Blade, Micro
