Description
General part information

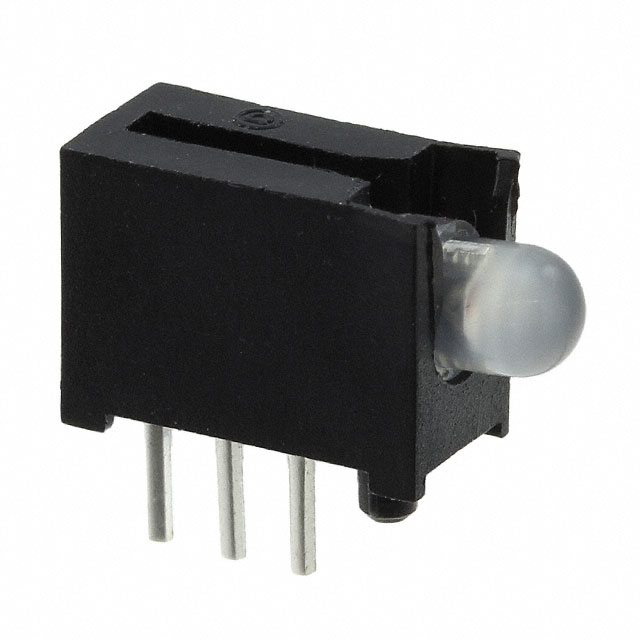

5513508803F
LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Diffused 2.1V Green, 2V Red 30mA Green, 30mA Red Round with Domed Top 3.00mm Dia
Technical Specifications
Parameters and characteristics for this part
| Specification | 5513508803F |
|---|---|
| Color | Green, Red |
| Configuration | Single |
| Current (Green) | 30 mA |
| Current (Red) | 30 mA |
| Current Colors | Green, Red |
| Lens Diameter | 3 mm |
| Lens Style | Round, Domed Top |
| Lens Type | Diffused |
| Millicandela Rating (Green) | 12 mcd |
| Millicandela Rating (Red) | 8 mcd |
| Millicandela Rating Colors | Green, Red |
| Viewing Angle (Green) | 68 ° |
| Viewing Angle (Red) | 59 ° |
| Voltage Rating - Color | Green, Red |
| Voltage Rating (Green) | 2.1 V |
| Voltage Rating (Red) | 2 V |
| Wavelength - Peak (1) | 560 nm |
| Wavelength - Peak (2) | 630 nm |
