9WPA0624P4G001

Active

Sanyo Denki America Inc.

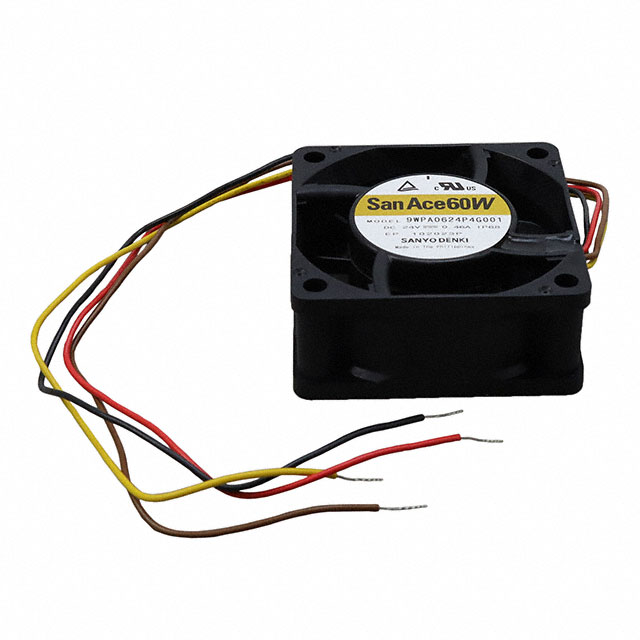

FAN AXIAL 60X25MM 24VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 24VDC WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	9WPA0624P4G001	9WPA0624 Series

Air Flow	1.5 m³/min	1.5 m³/min
Air Flow	53.7 CFM	0.428 - 53.7 m³/min
Air Flow	-	15.3 CFM
Bearing Type	Ball	Ball
Current Rating (Amps)	460 mA	50 - 460 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	56 dB	22 - 56 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	11.04 W	11.04 W
RPM	12000 RPM	3500 - 12000 RPM
Size / Dimension [x]	60 mm	60 mm
Size / Dimension [y]	60 mm	60 mm
Static Pressure	1.44 in H2O	0.12 - 1.44 in H2O
Static Pressure	358.7 Pa	29.9 - 358.7 Pa
Termination	4 Wire Leads	4 Position Rectangular Connector, 4 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Voltage Range [Max]	26.4 VDC	26.4 VDC
Voltage Range [Min]	21.6 VDC	21.6 VDC
Weight	-	0.243 lb
Weight	-	110.22 g
Width [y]	25 mm	25 mm

FAN AXL 60X25MM 24VDC RECT CONN

Part	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Termination	Fan Type	Width [y]	Bearing Type	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Static Pressure	Static Pressure	Features	Air Flow	Air Flow	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Ingress Protection	Lifetime @ Temp.	RPM	Material - Frame	Noise	Power (Watts)	Air Flow
Sanyo Denki America Inc. 9WPA0624P4G003	-20 °C	70 °C	-20 C	70 °C	0.243 lb	110.22 g	4 Position Rectangular Connector	Tubeaxial	25 mm	Ball	24 VDC	21.6 VDC	26.4 VDC	Plastic	29.9 Pa	0.12 in H2O	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	15.3 CFM	0.428 m³/min	50 mA	60 mm	60 mm	IP68 - Dust Tight, Waterproof	40000 Hrs	3500 RPM	Plastic	22 dB(A)
Sanyo Denki America Inc. 9WPA0624P4G001	-20 °C	70 °C	-20 C	70 °C			4 Wire Leads	Tubeaxial	25 mm	Ball	24 VDC	21.6 VDC	26.4 VDC	Plastic	358.7 Pa	1.44 in H2O	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)		53.7 CFM	460 mA	60 mm	60 mm	IP68 - Dust Tight, Waterproof	40000 Hrs	12000 RPM	Plastic	56 dB	11.04 W	1.5 m³/min
Sanyo Denki America Inc. 9WPA0624P4G0011	-20 °C	70 °C	-20 C	70 °C			4 Wire Leads	Tubeaxial	25 mm	Ball	24 VDC	21.6 VDC	26.4 VDC	Plastic	358.7 Pa	1.44 in H2O	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)		53.7 CFM	460 mA	60 mm	60 mm	IP68 - Dust Tight, Waterproof	40000 Hrs	12000 RPM	Plastic	56 dB	11.04 W	1.5 m³/min

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 53.7 CFM (1.50m³/min) 4 Wire Leads
