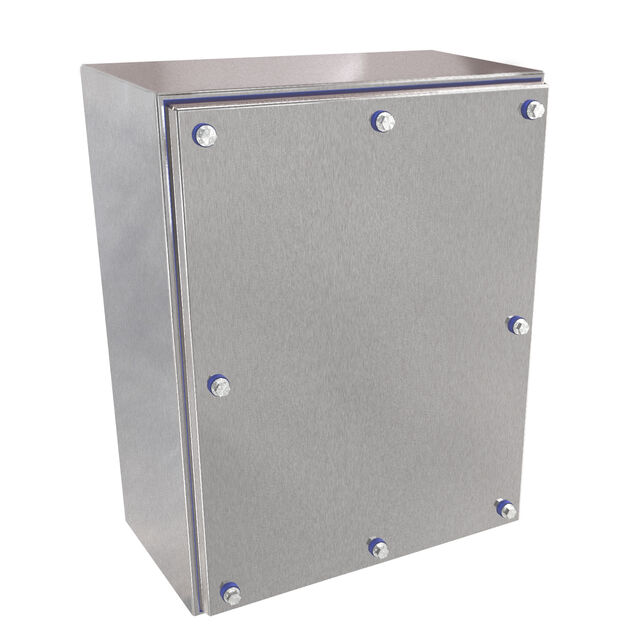

HYJ14116SS
ActiveHammond Manufacturing
JUNCTION BOX S STL 11.19"L X 6"W
HYJ14116SS
ActiveHammond Manufacturing
JUNCTION BOX S STL 11.19"L X 6"W
Description
General part information
HYJ14116SS
Junction Box Metal, Stainless Steel Gray Cover Included 11.190" L x 6.000" W (284.23mm x 152.40mm) X 14.150" (359.41mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | HYJ14116SS |
|---|---|
| Area (L x W) | 67.1 in², 66.5 in² |
| Color | Gray |
| Container Type | Junction Box |
| Design | Cover Included |
| Height | 14.15 in |
| Material | Stainless Steel, Metal |
| Ratings | IP69, NEMA 3R, 12, 4X, IP69K, 13, UL 508A, 4 |
| Size / Dimension Length | 11.19 in |
| Size / Dimension Width | 6 in |
