Description
General part information

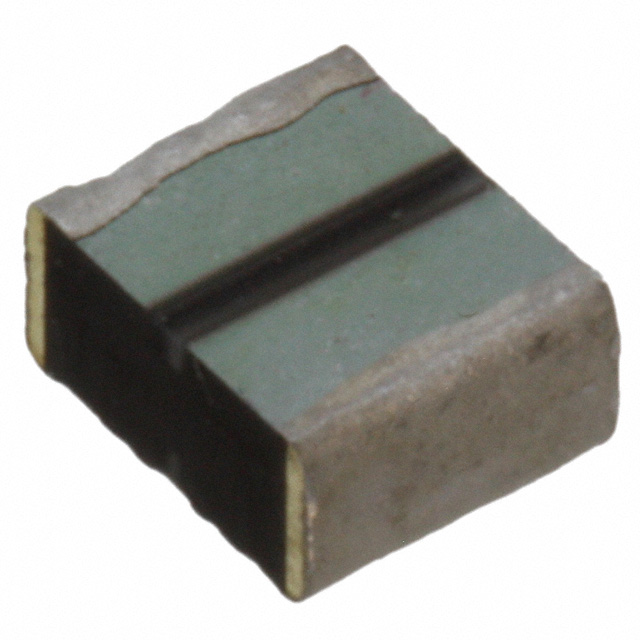

100ST104MB23225
0.1 µF Film Capacitor 100V Acrylic, Metallized 1210 (3225 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 100ST104MB23225 |
|---|---|
| Applications | DC Filtering, DC Link |
| Capacitance | 0.1 µF |
| Dielectric Material | Metallized, Acrylic |
| Height - Seated (Max) | 0.071 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1210 (3225 Metric) |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Termination | Solder Pads |
| Tolerance | 20 % |
| Voltage Rating - DC | 100 V |
