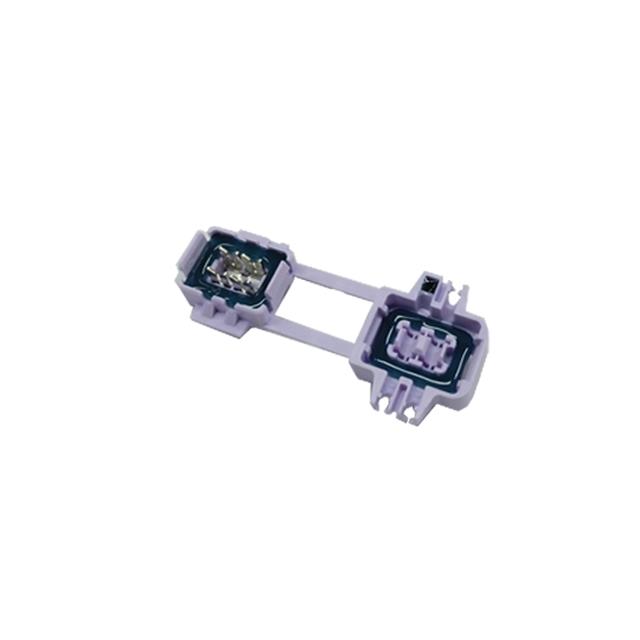

149715000000825+T
ActiveKYOCERA AVX
BRANCH CONNECTOR 0.5/0.75 SQMM
149715000000825+T
ActiveKYOCERA AVX
BRANCH CONNECTOR 0.5/0.75 SQMM
Description
General part information
149715000000825+T
Terminal Inline, Tap Connector IDC 0.5 ~ 0.75mm² (Al), 0.3 ~ 0.5mm² (Cu)
Technical Specifications
Parameters and characteristics for this part
| Specification | 149715000000825+T |
|---|---|
| Features | Waterproof, Hinged Lid |
| Insulation | Fully Insulated |
| Number of Wire Entries | 3 |
| Terminal Type | Inline, Tap |
| Termination | IDC |
| Wire Gauge (Cross-Sectional Area) (Max) | 0.5 mm², 0.75 mm² |
| Wire Gauge (Cross-Sectional Area) (Min) | 0.5 mm², 0.3 mm² |
| Wire Gauge (Material) | Al, Cu |
