5110F1
ActiveVisual Communications Company - VCC

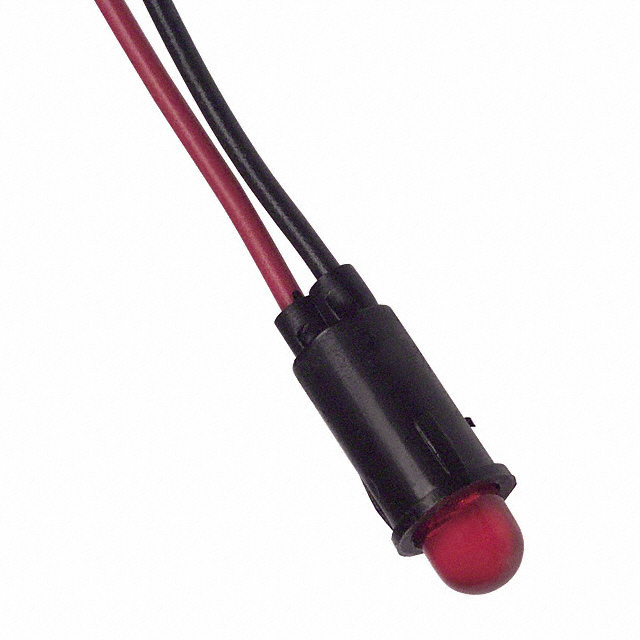

LED RED 5/32" HOLE PANEL MOUNT
5110F1
ActiveVisual Communications Company - VCC
LED RED 5/32" HOLE PANEL MOUNT
Description
General part information
5110F1
LED Panel Indicator Red Diffused 2V 30mA Wire Leads - 4.4" (111.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 5110F1 |
|---|---|
| Current | 30 mA |
| Lamp Color | Red |
| Lens Size | 3 mm |
| Lens Size (Code) | T-1 |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 10 mcd |
| Panel Cutout Dimension | 0.16 \ |
| Panel Cutout Shape | Round |
| Ratings | If (Max), Vf (Typ) |
| Termination Length | 4.4 in |
| Termination Style | Wire Leads |
| Type | LED |
| Voltage | 2 V |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
