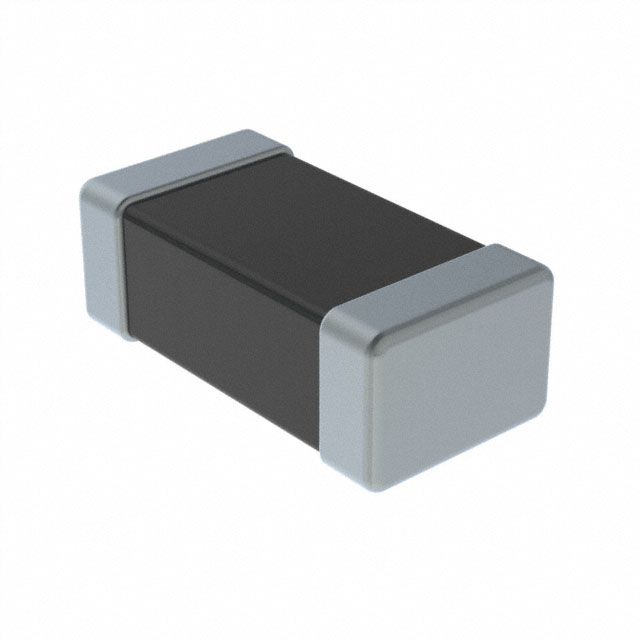

FBMJ3216HS480NT
ActiveTaiyo Yuden
FERRITE BEAD, 1206 [3216 METRIC], 48 OHM, 6 A, FB SERIES, 0.005 OHM, ± 30%
FBMJ3216HS480NT
ActiveTaiyo Yuden
FERRITE BEAD, 1206 [3216 METRIC], 48 OHM, 6 A, FB SERIES, 0.005 OHM, ± 30%
Description
General part information
FBMJ3216HS480NT
48 Ohms @ 100 MHz 1 Power Line Ferrite Bead 1206 (3216 Metric) 6A 5mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | FBMJ3216HS480NT |
|---|---|
| Current Rating (Max) | 6 A |
| DC Resistance (DCR) (Max) | 5 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.051 in |
| Impedance | 48 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
