24FP-472K
ActiveGowanda Electronics
FIXED IND 47UH 1.84A 0.104OHM TH
24FP-472K
ActiveGowanda Electronics
FIXED IND 47UH 1.84A 0.104OHM TH
Description
General part information
24FP-472K

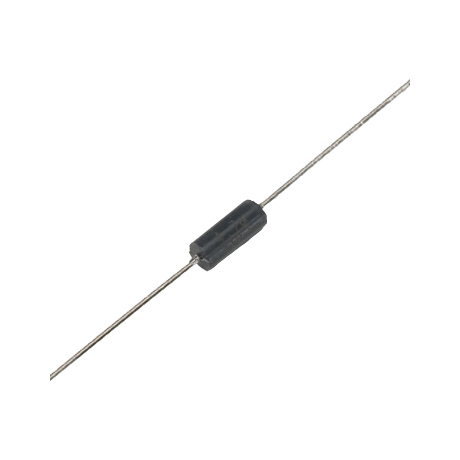

47 µH Unshielded Molded Inductor 1.84 A 104mOhm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | 24FP-472K |
|---|---|
| Current - Saturation (Isat) | 1.7 A |
| Current Rating | 1.84 A |
| DC Resistance (DCR) (Max) | 104 mOhm |
| Inductance | 47 µH |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.215 in |
| Size / Dimension Length | 0.56 in |
| Tolerance | 10 % |
| Type | Molded |
