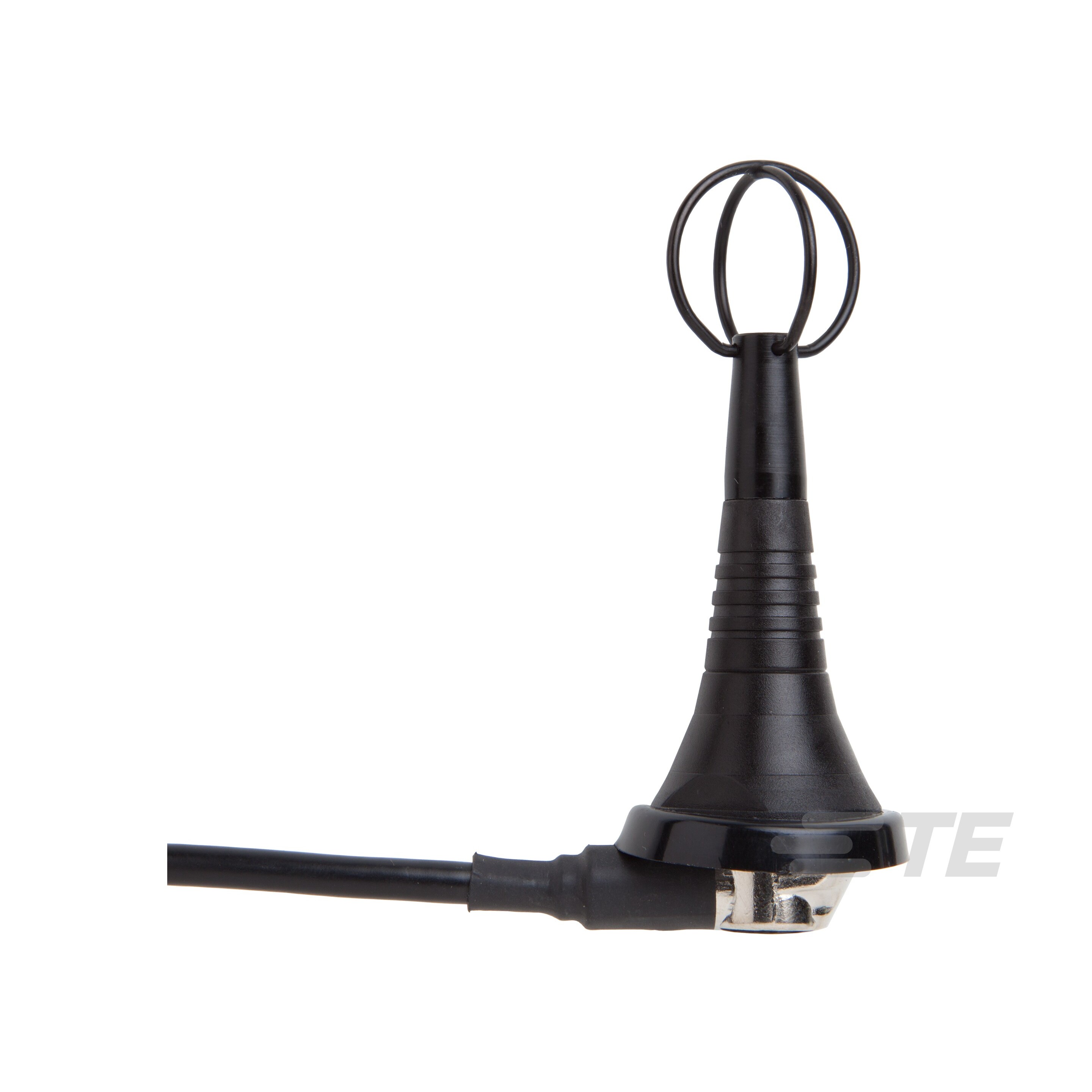

ANT-DB1-RMS-SMA
ActiveTE Connectivity AMP Connectors
ANTENNA VEHICLE DUALBAND RG58 4.3M SMA
ANT-DB1-RMS-SMA
ActiveTE Connectivity AMP Connectors
ANTENNA VEHICLE DUALBAND RG58 4.3M SMA
Description
General part information
ANT-DB1-RMS-SMA
Terminal/Duck Antenna, Multi Band, Cellular, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Single Port, 3 < 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-DB1-RMS-SMA |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | General Purpose |
| Features | Cable, 358.14mm |
| Frequency (Band) | 1.85 GHz |
| Frequency (Center) | 892 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz, 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz, 1 GHz |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 824 MHz |
| Frequency Range (Band 2) Maximum | 1.99 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Gain | 5.3 dBi, -0.6 dBi |
| Height (Max) | 3.06 in |
| Mounting Type | Through Hole |
| Number of Bands | 2 |
| RF Family/Standard | General ISM |
| Termination | SMA |
| VSWR | 2, 1.5 |
| VSWR Maximum | 2 |
| VSWR Minimum | 1.5 |
