112803
ActiveMcGill Microwave Systems

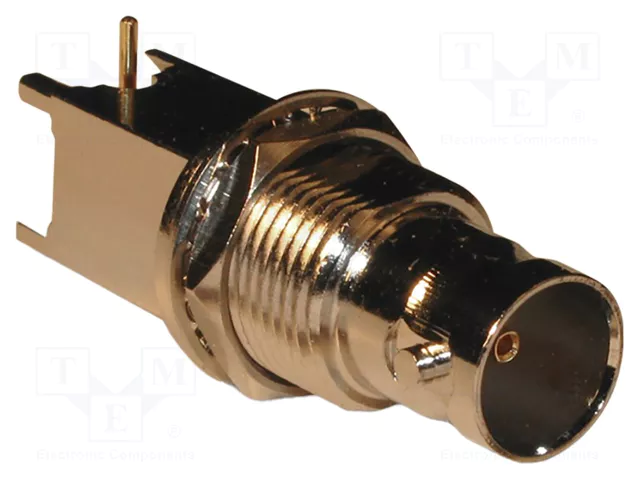

CONNECTOR: BNC; SOCKET; FEMALE; STRAIGHT; 75Ω; THT; PTFE; BRASS
112803
ActiveMcGill Microwave Systems
CONNECTOR: BNC; SOCKET; FEMALE; STRAIGHT; 75Ω; THT; PTFE; BRASS
Description
General part information
112803
CONNECTOR: BNC; SOCKET; FEMALE; STRAIGHT; 75Ω; THT; PTFE; BRASS
Technical Specifications
Parameters and characteristics for this part
| Specification | 112803 |
|---|---|
| Center Contact Material | Beryllium Copper |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 3 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Through Hole, Surface Mount, Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Solder |
