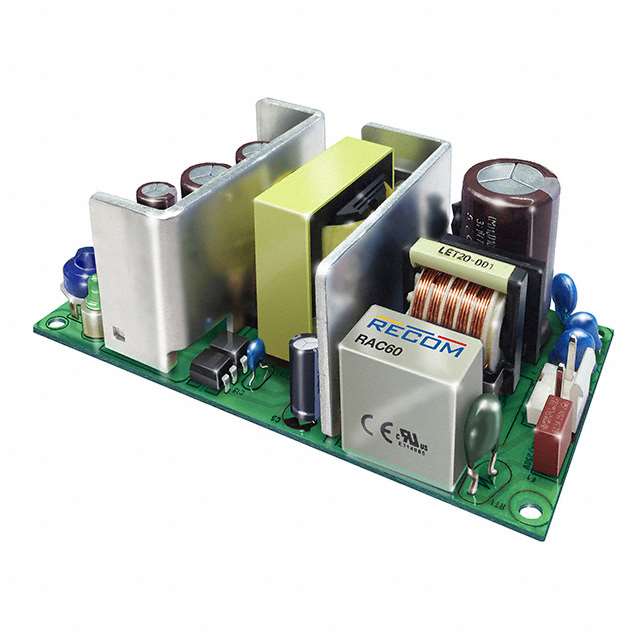

RAC60-15S/OF
ObsoleteRecom Power
AC/DC CONVERTER 15V 60W
RAC60-15S/OF
ObsoleteRecom Power
AC/DC CONVERTER 15V 60W
Description
General part information
RAC60-15S/OF
Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RAC60-15S/OF |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, CB |
| Current - Output 1 | 4 A |
| Efficiency | 84 % |
| Features | DC Input Capable, Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 60 W |
| Size / Dimension Height | 1.18 in |
| Size / Dimension Length | 4 in |
| Size / Dimension Width | 2 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 15 V |
